Flame Safety and Burner Controls

BCU Burner Control Units and Flame Safety

BCU Burner Control UnitThe Kromschröder Advantage in Flame Safety

Kromschröder has produced one of the most capable lines of industrial flame safety equipment available anywhere. Not only does every Kromschröder flame safety control allow you to use flame rods or UV sensors without replacing amplifiers, they have advanced features tailored specifically to the industrial market. In addition, Kromschröder offers flame safety in a variety of form factors - so that this critical control fits the system YOU want to create, rather than forcing you to wrap your system design around an inflexible platform.

All units include a UV/flame rod amplifier as standard and most units use a bright, 2-digit LED display to indicate flame control status.

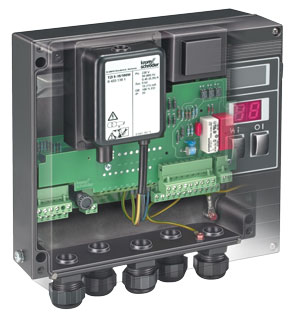

The BCU 300 and BCU 400 burner control units are specifically designed to mount near a burner (in a NEMA 3R enclosure). This greatly simplifies field wiring and allows for local control of a burner during commissioning. A bright, 2-digit LED display clearly indicates the state of the flame control and allows your operations staff to know instantly what is going on with your burners. Options for the BCUs include dual sensor/dual amplifier (for continuous or intermittent piloted burners), auto-cycling of the burner on a 24 hour period (to ensure the integrity of the flame sensor), 1400 Degree bypass inputs (to safely enter and leave 1400 Degree bypass mode), proof of closure switch monitoring, and an integrated ignition transformer. Network control and monitoring of the BCU is available via the Profi-busT industrial network (all options must be specified at time of order).

The PF-19 burner control system is designed for door or panel mounting in a control enclosure and provides very high density flame supervision (control up to 9 burners in a single 19 inch rack that is 5.25 inches high and 7.75 inches deep). Eliminate the need for extra large (and expensive) control cabinets that hog your precious floor space! An optional MPT pulse module provides PULSE-FIRE control for the PF-19 system WITHOUT PROGRAMMING! Simply connect the PF-19 to your own series limit string and temperature loop controller and you have a complete combustion system! Racks can be ganged together to control furnaces with hundreds of burners.

For simple systems that are direct-spark ignited and operate for less than 24 hours, the IFD-258 is an economical choice with surprising features. As with its larger cousins, the IFD can accept UV or flame rod sensors and has a 2-digit LED display.

Both the BCU and the PF-19 system can be configured and monitored via Kromschröder's BCSoft software. This software lets you modify the parameters that control the action of the BCU or PF-19 module, includes a data-logging function, and lets you view the performance history of the flame safety control. The software is a great price - FREE! - when you buy the Kromschröder Optical Interface.

BCU 370 Burner Control Unit

BCU Burner Control Series

For modulating, forced draught burners for gas of unlimited capacity in intermittent or continuous operation.

PFU 760 Burner Control Unit

PF-19 Burner Control System

High density, modular, cabinet door mounted multi-burner control system.

Flame Relay IFW15

IFW15 Flame Relay

Flame relay to detect and signal an existing flame using flame rod or UV-detector.

Automatic Burner Control Unit IFS 110IM

IFS 110IM Burner Control

Automatic burner control units for monitoring and control of gas burners, for intermittent operation, with ionization or UV control.

Automatic Burner Control Unit IFD 258

IFD 258 Burner Control

Burner control unit for use in multi burner systems and single burner systems.

Jump to Burner Control page
