Impulse System MPT-C911 - DROP IN REPLACEMENT FOR MPT 700

• MPT-C911 available now as a drop-in replacement for MPT 700
• Energy saving
• Reduced pollutant emissions
• Single- or dual-zone operation
• For 4-20mA continuous controllers
• Linear ratio between controller signal and burner capacity
• Auto-calculated ignition timing for high operating convenience

Learn More:
Description   Documentation   Pulse-Fire Primer   Specifications

Description

MPT-C911 was developed as a drop-in replacement for Kromschröder’s discontinued MPT 700A. We’ve mimicked the function of the MPT 700A using current technology.

Our 19” module converts a controller signal to pulse cycles for gas burners. This intermittent operation circulates the air in the oven or kiln to achieve uniform temperature distribution and a shorter heat-up time on gas-fired heat treatment ovens.

Four operating modes can be programmed in MPT-C911. Options for heat and cooling modes allow for controlled cooling, resulting in increased temperature accuracy.

Touchscreen controls allow for easy set up with no additional software required.

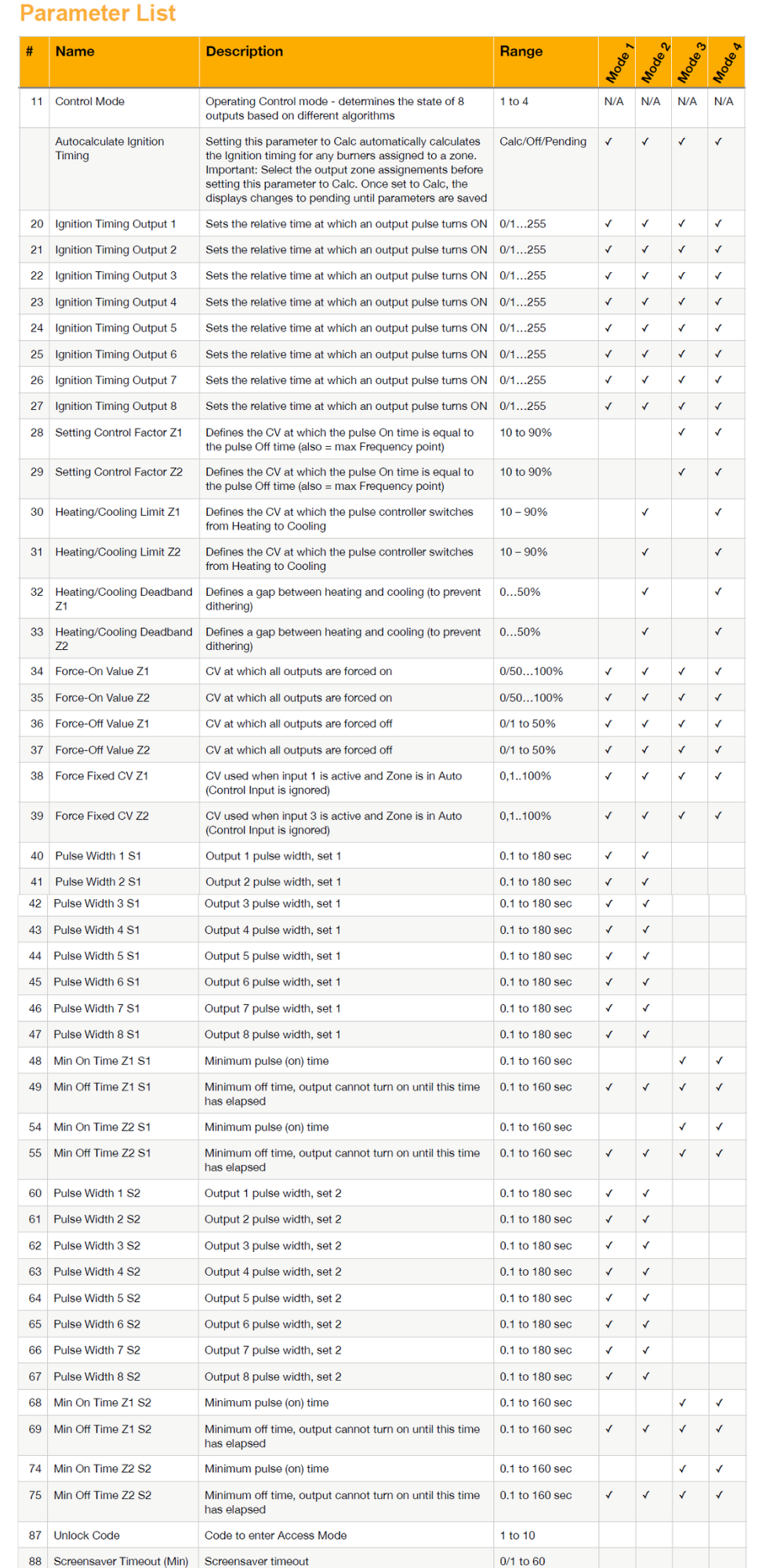

Pre-programing is available for only $100 more with the purchase of your MPT-C911. If you can provide us with the parameter set (example below), Combustion 911 will set up your MPT-C911 for true plug-and-play delivery.

The technical manual for MPT-C911 is available in the Documents section below. When you’re ready to buy, contact us!

Please note, MPT-C911 has four operating modes (the most popular) rather than eight. Please check the technical manual or contact us to make sure MPT-C911 is right for you.

Documentation

MPT-C911 Technical Manual

Pulse-Fire Primer

	Pulse-Fire 101 -- An Introduction to Pulse-fire Combustion Systems (Blog Post)
	Pulse-Fire 101 – Pulse-fire Equipment (Blog Post)
	Pulse-Fire 101 – Pulse-fire Implementation (Blog Post)
	Pulse-Fire 101 – Pulse-fire Pitfalls (Blog Post)
