Vent Valve VAN

The VAN vent valve is for venting the area between the main shut-off valve and the block valve in the main gas train. The magnetic relief valve VAN is designed to monitor gas valves for tightness used in conjunction with a visual discharge unit. It enables the purging of excess or leakage gas. The magnetic relief valve VAN is open when it is de-energized.

Features

• Open when de-energized
• Connection flanges for pipes up to DN 50
• Suitable for a maximum inlet pressure of 500 mbar (7 psig)
• Space-saving installation thanks to compact dimensions
• Quick closing, quick opening
• Check indication by blue LED
• Position indicator with visual indicator
• EC type-tested and certified

	Documentation Manufacturer's Product Brochure Manufacturer's Operating Instructions Manufaturer's Technical Sheet
	Ordering Information Model Valvario Size Connection Open/Close Speeds Mains Voltage Visual Indicator Flow Direction Price (US List) Order Now VAN 1T15N/NQ 1 Flanged ½" NPT internal thread quick opening, quick closing 120 V AC, 50/60 Hz No Either $310 VAN 1T20N/NQ 1 Flanged ¾" NPT internal thread quick opening, quick closing 120 V AC, 50/60 Hz No Either $344 VAN 1T25N/NQ 1 Flanged 1" NPT internal thread quick opening, quick closing 120 V AC, 50/60 Hz No Either $352 VAN 2T32N/NQ 2 Flanged 1¼” NPT internal thread quick opening, quick closing 120 V AC, 50/60 Hz No Either $425 VAN 2T40N/NQ 2 Flanged 1½" NPT internal thread quick opening, quick closing 120 V AC, 50/60 Hz No Either $433 VAN 2T50N/NQ 2 Flanged 2" NPT internal thread quick opening, quick closing 120 V AC, 50/60 Hz No Either $433 VAN 1T15N/NQSR 1 Flanged ½" NPT internal thread quick opening, quick closing 120 V AC, 50/60 Hz Yes Right $443 VAN 1T20N/NQSR 1 Flanged ¾" NPT internal thread quick opening, quick closing 120 V AC, 50/60 Hz Yes Right $476 VAN 1T25N/NQSR 1 Flanged 1" NPT internal thread quick opening, quick closing 120 V AC, 50/60 Hz Yes Right $485 VAN 2T32N/NQSR 2 Flanged 1¼” NPT internal thread quick opening, quick closing 120 V AC, 50/60 Hz Yes Right $557 VAN 2T40N/NQSR 2 Flanged 1½" NPT internal thread quick opening, quick closing 120 V AC, 50/60 Hz Yes Right $565 VAN 2T50N/NQSR 2 Flanged 2" NPT internal thread quick opening, quick closing 120 V AC, 50/60 Hz Yes Right $565 VAN 1T15N/NQSL 1 Flanged ½" NPT internal thread quick opening, quick closing 120 V AC, 50/60 Hz Yes Left $443 VAN 1T20N/NQSL 1 Flanged ¾" NPT internal thread quick opening, quick closing 120 V AC, 50/60 Hz Yes Left $476 VAN 1T25N/NQSL 1 Flanged 1" NPT internal thread quick opening, quick closing 120 V AC, 50/60 Hz Yes Left $485 VAN 2T32N/NQSL 2 Flanged 1¼” NPT internal thread quick opening, quick closing 120 V AC, 50/60 Hz Yes Left $557 VAN 2T40N/NQSL 2 Flanged 1½" NPT internal thread quick opening, quick closing 120 V AC, 50/60 Hz Yes Left $565 VAN 2T50N/NQSL 2 Flanged 2" NPT internal thread quick opening, quick closing 120 V AC, 50/60 Hz Yes Left $565

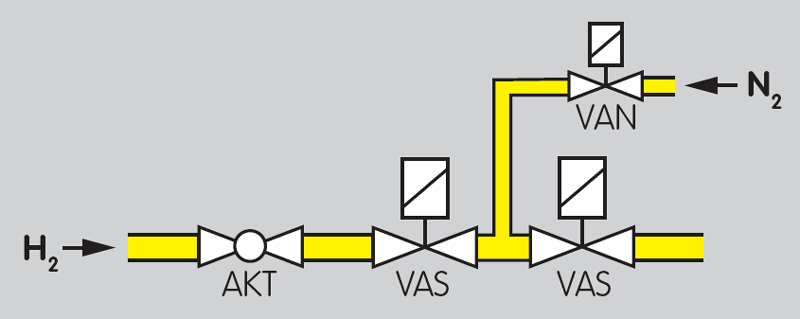

	Applications Click on images for close-up view. Relief valve with two gas solenoid valves and tightness control Tightness control TC 2 checks the gas solenoid valves VAS and the magnetic relief valve VAN for tightness. If the gas solenoid valves and the magnetic relief valve are tight, the tightness control forwards an enable signal to the automatic burner control unit. The pilot valve output of the automatic burner control unit opens the gas solenoid valves VAS simultaneously. The burner starts. In accordance with the Russian safety regulations PB 12-529-03, installations with a capacity of ≥ 1.2 MW must be fitted with a relief valve and tightness control. Relief valve with 2 gas solenoid valves A valve, open when de-energized, is designed to purge gas to a safe venting point. For the NAFTA market, this applies for capacities of ≥ 117 kW (400,000 BTU/h) Inert gas atmosphere for annealing processes Whenever no hydrogen is needed for the annealing process (e.g. in the case of an annealing bell), the gas solenoid valves VAS and the magnetic relief valve VAN are disconnected from the electrical power supply. The VAN opens. Under high pressure, nitrogen can now get between the two gas solenoid valves VAS. This prevents hydrogen from flowing into the furnace.
	Specifications Operating Limits Ambient temperature range: -4° F to 104° F (-20° C to 40° C) Maximum inlet pressure: 3 psig (200 mbar) Maximum static line pressure : 30 psig (2.1 bar) (with valve closed) Opening time: less than 0.5 seconds Closing time: less than 1 second Operating life: 2 million cycles     Electrical Data Supply voltage: 120 Vac; +10/-15%; 50/60 Hz Duty cycle: Continuous Conduit connection: 1⁄2" NPT Terminal: Maximum 14 gauge wire size Type of enclosure: NEMA 3 (IP 54) Solenoid coil insulation: Class F Solenoid coil power factor: cos φ = 1 Power consumption at 120 Vac: 31 VA or watts A full wave rectifier located in the terminal box converts incoming AC current to DC. Power consumption is the same on start-up and during continuous operation.     Contruction Materials   VAN vent valves have pressure die cast aluminium bodies and solenoid housings with nitrile rubber o-rings seals and valve disc seal. Valve constructed with 1⁄4" pressure taps on both sides of the valve outlet and built in mesh strainers.
