Power Supply PFP 700

The PFP 700 power supply is used to supply control inputs on the burner control unit or to provide auxiliary power to relay cards.

The operating status is displayed on the front panel (green LED). In the event of an overload at output I > 600 mA the red LED comes on, the green LED goes out and the PFP 700 switches off the output.

Features

• Output voltage 24 V DC
• Output load 14 VA
• Short-circuit-proof
• FM approved

	Documentation Manufacturer's Product Brochure Manufacturer's Operating Instructions
	Ordering Information Model Description Price (US List) Order Now PFP 700T 19" module to supply control inputs on the burner control unit or to provide auxiliary power to relay cards. $469

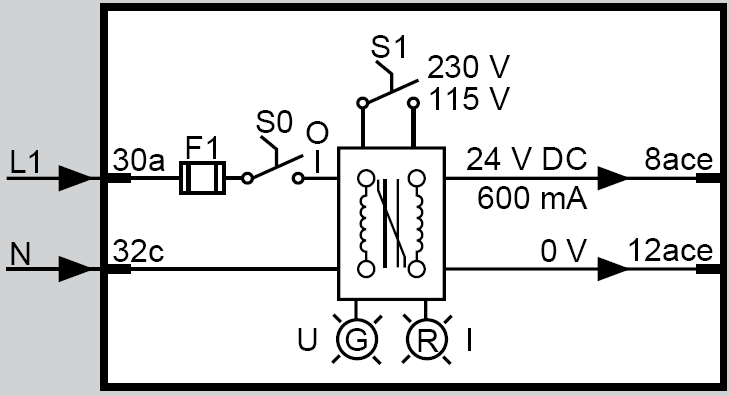

	Applications Click on images for close-up view. The operating status is displayed on the front panel (green LED). In the event of an overload at output I > 600 mA the red LED comes on, the green LED goes out and the PFP 700 switches off the output.
	Specifications General Specifications Power consumption: 25 VA Output load: 24V DC, 600 mA, short-circuit-proof. Fine-wire fuse 0.37A, slow blowing, acc. to UL. Weight: approx. 1.7 lbs (0.75 kg)
