Field Bus Interface PFA 700A

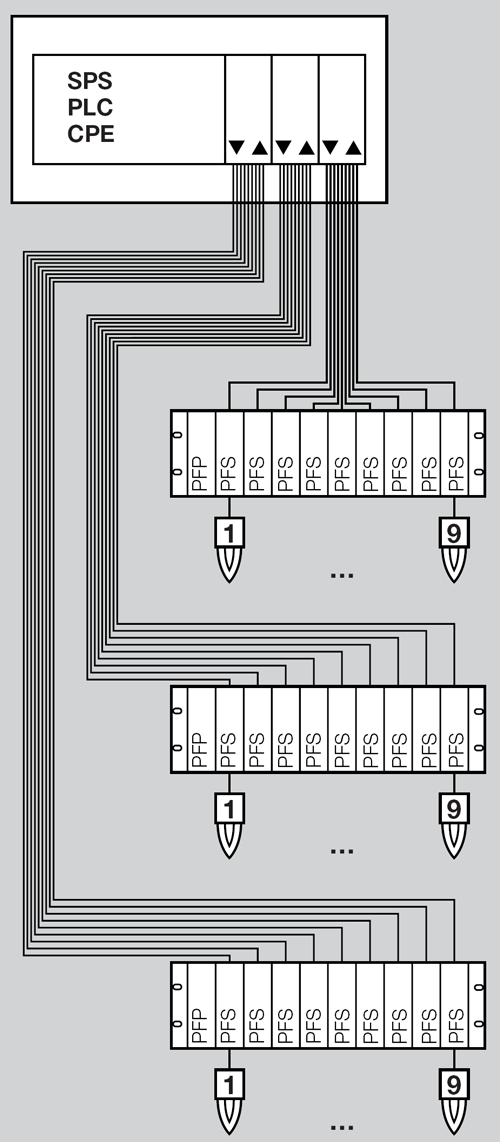

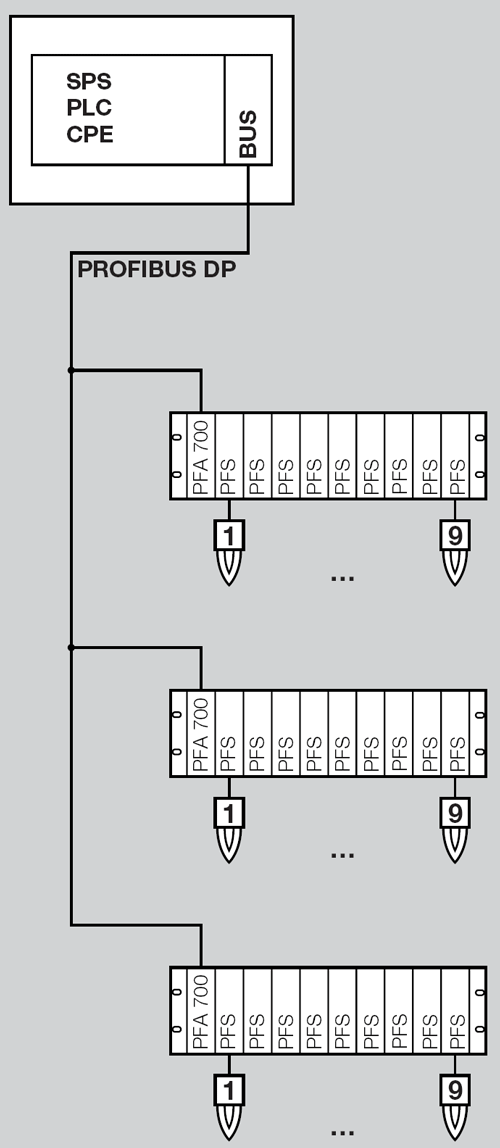

PROFIBUS DP, as a standardized field bus system, substantially reduces development, installation, and commissioning effort and expenditure. The system facilitates handling high volumes of information to and from the control room, such as measurement, closed-loop control and open-loop control signals, or alarms can be transmitted in a concentrated manner via the network (see Applications below). Standard diagnostic tools, such as a bus tester for systematic testing of bus lines and slaves when setting up the network, and bus monitors for recording bus communication or visualization systems for display of the process, permit easy servicing. Features
|
|||||||||||||||||||||||||||||||||||||||||||
This is a 19" module for networking up to nine automatic burner control units PFS, PFD, or PFU 778L with industrial communication networks. This interface is for spanning lengthy distances for signal processing common in industrial furnaces and kilns.
