Automatic Burner Control Unit IFD 258

The automatic burner control unit IFD 258 ignites and monitors gas burners. Because of its fully electronic design, it reacts quickly to various process requirements and is suitable for frequent cycling operation.

It can be used for directly ignited industrial burners of unlimited capacity. The burners may be modulating or stage-controlled.

The program status and the level of the flame signal can be read directly from the unit. The cut-off point can be set using a potentiometer.

The behavior in the event of flame failure during operation can be selected using a switch. Either an immediate fault lock-out or a restart occurs.

View the Animation (flash required)

Features

• For directly ignited burners of unlimited capacity in continuous operation pursuant to EN 746-2
• Continuous self-testing for faults
• Immediate fault lock-out or restart following flame failure available as a switchable function
• Flame control with UV sensor or ionization sensor
• Diverse installation possibilities via holes or snap mechanism for DIN rail
• Space-saving installation on site with IFD 258..I with integrated ignition
• Display for program status and flame signal intensity
• UL, CSA, CE, AGA approvals

	Documentation Manufacturer's Product Brochure Manufacturer's Operating Instructions Manufacturer's Technical Sheet
	Ordering Information Model Mains Voltage Safety time during operation Trial for Ignition Period Price (US List) Order Now IFD 258T-3/2Q 120 V AC, 50/60 Hz 2 seconds 3 seconds $360 IFD 258T-5/2Q 120 V AC, 50/60 Hz 2 seconds 5 seconds $360 IFD 258-10/1Q 120 V AC, 50/60 Hz 1 second 10 seconds $358 IFD 258T-10/2Q 120 V AC, 50/60 Hz 2 seconds 10 seconds $360 IFD 258-10/1W 230 V AC, 50/60 Hz 1 second 10 seconds $360

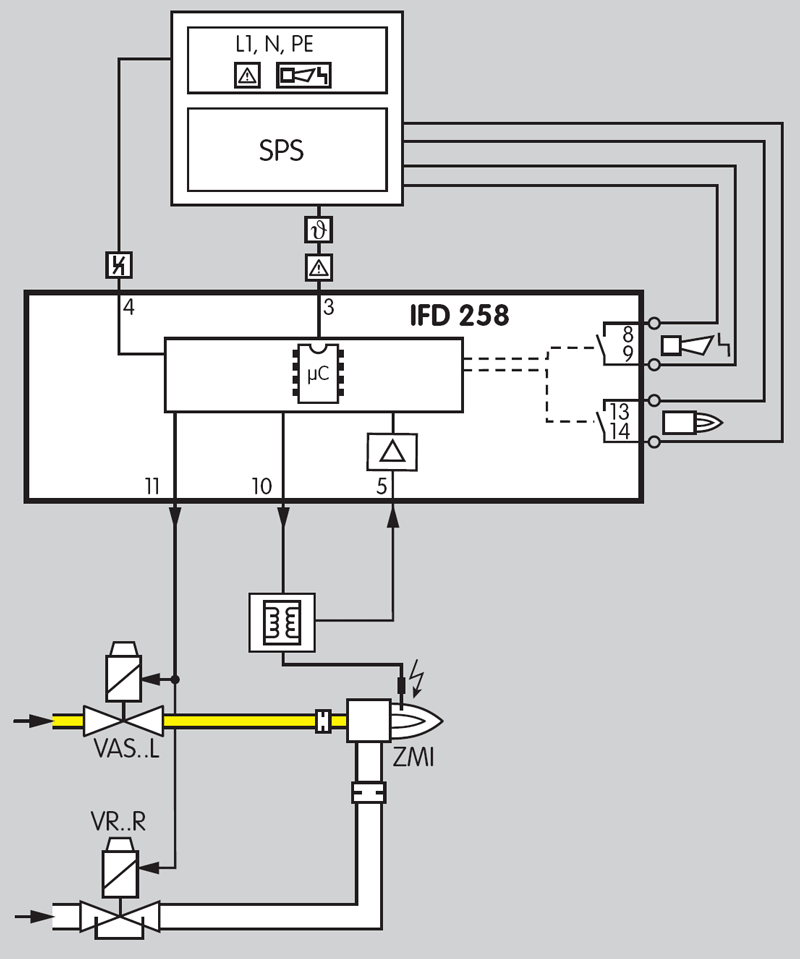

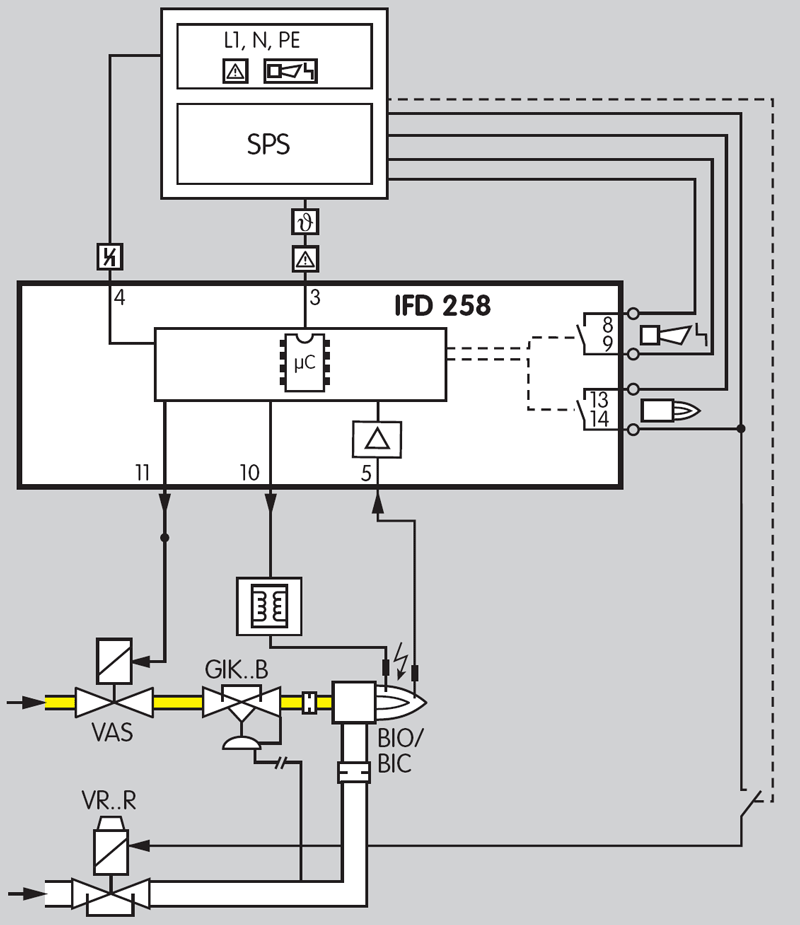

	Applications Click on images for close-up view. Forced draught burners Control: On/Off Gas valve and air valve are activated simultaneously. The burner is ignited and monitored by a single electrode. In the event of a flame failure, an immediate fault lock-out occurs. Two-stage-controlled burner Control: ON/OFF or ON/HIGH/LOW/OFF The burner BIO/BIC starts at low-fire rate. Once the normal operating state is reached, the automatic burner control unit for continuous operation IFD 258 will release control. The PLC can now pulse the air solenoid valve VR..R in order to control the capacity between high and low fire. Modulating-controlled burner Control: ON/OFF/continuous The PLC uses the actuator IC 20 to move the air butterfly valve BVA to ignition position. The burner BIO/BIC starts at low-fire rate. Once the normal operating state is reached, the PLC uses the actuator IC 20 and the air butterfly valve BVA to control the burner capacity.
	Specifications General Specifications Operating voltage: 200 V AC, -15/+10%, 50/60 Hz 120 V AC, -15/+10%, 50/60 Hz 100 V AC, -15/+10%, 50/60 Hz 230 V AC, -15/+10%, 50/60 Hz Safety time on start-up: 3, 5, or 10 sec. Safety time during operation: < 1sec. < 2 sec. Ignition time: approx. 2, 3 or 6 sec Power consumption: approx. 9 VA (approx. 9 VA + 25 VA during ignition "I" products) Output voltage for valves and ignition transformer: mains voltage Ignition output: max. 2 A, cos φ = 0.2 Valve output: max. 1 A, cos φ = 1 Signalling contacts: max. 2 A, 253 V AC Max. number of operating cycles: 250,000 Max. number of operating cycles for Reset button: 1000 Max. number of operating cycles for Mains button: 1000 Signal inputs (110/120 V AC): Signal "1": 80 - 126.5 V Signal "0": 0 - 20 V Frequency: 50/60 Hz. Input current signal inputs: Signal "1": typ. 2 mA. Flame control sensor voltage: approx. 230 V AC Flame control sensor current: > 1 µA Flame control Max. sensor current: ionisation < 28 µA. Ignition cable: IFD 258: max. 5 m, recommended < 1 m (with TZI/TGI) IFD 258..I: max. 1 m, recommended < 0.7 m. Permissible UV sensors: Elster Kromschröder models UVS 1, 5 and 6 for ambient temperatures from -40 to +80°C (-40 to 176°F) Valve connections: 1 IFD 258..I: Ignition voltage: 22 kVpp Ignition current: 25 mA Spark gap: 2 mm, max. 5 mm Fuse in unit: F1: T 3.15A H 250 V pursuant to IEC 127-2/5 Ambient temperature: -20 to +60°C (-4 to +140°F) Relative humidity: no condensation permitted Enclosure: IP 54 pursuant to IEC 529. Overvoltage category III pursuant to EN 60730 Cable gland: M16 Installation position: any Weight: IFD 258: 610 g (1.34 lbs.) IFD 258..I: 770 g (1.7 lbs.)
