BCU 370

Burner Control BCU 370QFEU0D1

Price:
Quantity:
  • Mains voltage: 120 V AC, 50/60 Hz
  • No ignition or tightness control
  • Modulation of forced air gas burners of unlimited capacity in intermittent or continuous operation
  • Control of fan and butterfly valves
  • Easy start-up and maintenance in manual operating mode
  • Enhanced flexibility and simplified logistics with programmable functions
  • Easy servicing with user-friendly operating, warning, and fault messages
  • CSA and FM approved

Accessories

Model and Description Price Cart
PCO 200
Optical Adapter for BC Soft with USB interface, includes CD-ROM
Ignition Cable
Silicon Rubber Cable High Voltage 7mm (priced per foot).

Applications

Click on images for close-up view.

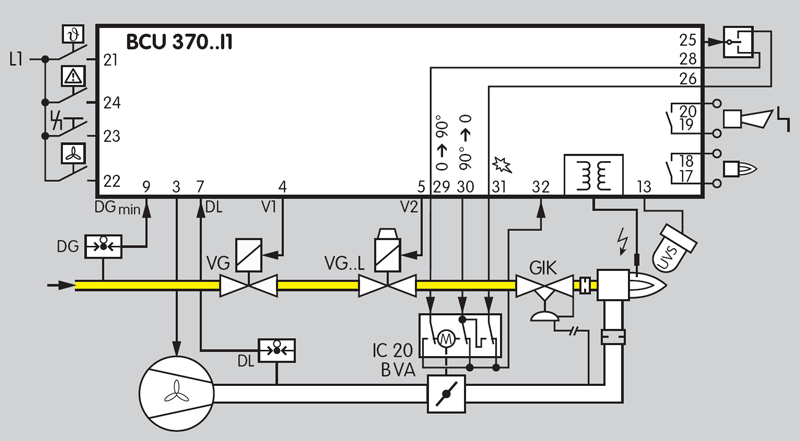

Application for BCU 370 Burner Control Unit Modulating-controlled forced draught burner

The BCU 370 controls the blower and moves the butterfly valve to pre-purging and ignition position. It issues the Enable signal to the control system after start-up of the burner.

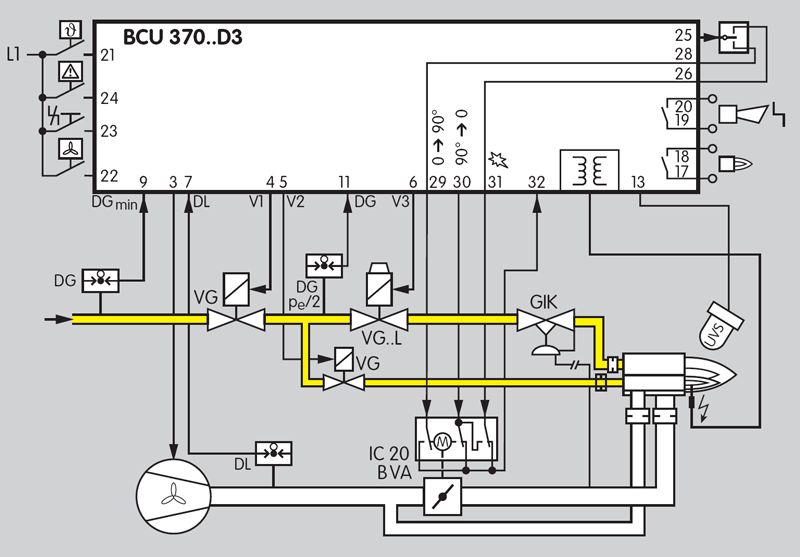

Application for BCU 370 Burner Control Unit Modulating-controlled forced draught burner with tightness control

In addition to controlling the forced draught burner, the burner control unit also monitors the fail-safe function of the two solenoid valves for gas via the DG gas pressure switch.
Application for BCU 370 Burner Control Unit Modulating-controlled forced draught burner with pilot burner and tightness control

A pilot burner ignites the main burner and is switched off during the main burner’s safety time.

Specifications

Electrical
Mains voltage: 120 V AC, -15/+10%, 50/60 Hz, for grounded or ungrounded mains.
Power consumption: Approx. 9 VA plus approx. 50 VA for integrated ignition
Voltage to inputs, valves, fan, controller enable, actuator and ignition unit: mains voltage
Flame control with UV sensor or ionization sensor: Ionization control: 1 – 28 µA
UV control: 1 – 35 µA
Input voltage signal inputs: Signal "1": 80-126.5 V
Signal "0": 0-20V
Input current signal "1": Typ. 2 mA
Output to ignition transformer: No-switch contacts via semi-conductor
Max. number of operating cycles: 250,000
Contact Ratings
Valves: Max. 1 A, cos φ = 1
Butterfly valves: Max. 1 A, cos φ = 1
Ignition: Max. 1 A, cos φ = 0.3
Controller enable signal: Max. 1 A, cos φ = 1, the contacts may be loaded with a max. total of 2.5 A
Fan: Max. 3 A, start-up current: Max. 6.5 A < 1 s.
The outputs may be loaded with a max. total of 4 A.
Operation and fault signalling contacts: Dry Contact, max. 1 A, 253 V, not fused internally
Reset/Information button: Max. number of operating cycles: 1000
Fuse in BCU, replaceable, F1: T 5A H, pursuant to IEC 60127-2/5
Permissible UV sensors: Elster Kromschroder models UVS 1, 5, 6, 8 and UVD 1
Operation and Environment
Maximum length of ignition cable with integrated electronic ignition: 1 m
Maximum length of ionization/UV cable: 50 m (164 ft)
Ambient temperature: BCU 370: -20 – +60 °C (-4 – +140 °F)
BCU 370..I: -10 – +60 °C (14 – +140 °F)
no condensation permitted

Construction Materials
Enclosure: IP 54 pursuant to IEC 529
Housing: impact-resistant and heat-resistant plastic
Upper section: Plug-in upper section with operating and display elements
Lower section: connection terminals, earthing strip and prewired neutral bus with spacious wiring chamber
Connections: 1x M25 multiple screw connector, 4x 7 mm cable grommets.
2x M20 multiple screw connectors, 2x 7 mm cable grommets, and loosely enclosed.
1x or 2x M16 plastic screw connector(s) for the ignition cable(s).
Weight: Approx. 1.8 kg (4 lbs.)

Jump to BCU 370 model page

Model:

Click Here for Help choosing which model you need.
(Click here to Close)

Select Desired Attribute

  All Products
All BCU 370
with Electronic Ignition
with Tightness Control
Accessories
BCU 370QFEU0D1
Price:
Without ignition; Mains voltage: 120 V AC, 50/60 Hz
BCU 370QFEU0D3
Price:
Without ignition; With tightness control; Mains voltage: 120 V AC, 50/60 Hz
BCU 370QI1FEU0D1
Price:
Electronic ignition, single-pole; Mains voltage: 120 V AC, 50/60 Hz
BCU 370QFEU0D3B1-3
Price:
With tightness control, ProifiBUS-DP and butterfly valve control over ProfiBUS; Mains voltage: 120 V AC, 50/60 Hz
PCO 200
Price:
Optical Adapter for BC Soft with USB interface, includes CD-ROM
Ignition Cable
Price:
Silicon Cable High Voltage 7mm (priced per foot)
