BVG ACC 01

Price:
Quantity:

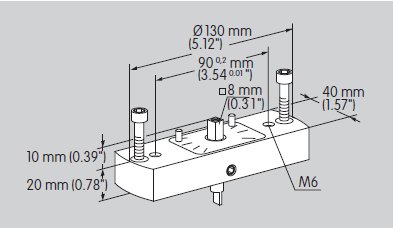

  • BVG Adapter Set with Square Shaft
  • Required if the butterfly valve is to be mated to an actuator other than IC
  • For use with actuators that have a square shaft end
  • Includes adapter block and (2) bolts

Jump to BVG model page

Model:

Click Here for Help choosing which model you need.
(Click here to Close)

Select Connection Type

  All Products
Normal bore
Reduced bore
2× reduced bore
Adapter sets
BVG 40W05
Price:
Bore diameter: 1½″; Max inlet pressure: 500 mbar (7.25 psig); Connection fitting: between two ANSI flanges (1½″
BVG 50W05
Price:
Bore diameter: 2″; Max inlet pressure: 500 mbar (7.25 psig); Connection fitting: between two ANSI flanges (2″)
BVG 65W05
Price:
Bore diameter: 2½″; Max inlet pressure: 500 mbar (7.25 psig); Connection fitting: between two ANSI flanges (2½″)
BVG 80W05
Price:
Bore diameter: 3″; Max inlet pressure: 500 mbar (7.25 psig); Connection fitting: between two ANSI flanges (3″)
BVG 100W05
Price:
Bore diameter: 4″; Max inlet pressure: 500 mbar (7.25 psig); Connection fitting: between two ANSI flanges (4″)
BVG 40/32W05
Price:
Bore diameter: 1¼″ (reduced bore); Max inlet pressure: 500 mbar (7.25 psig); Connection fitting: between two ANSI flanges (1½″)
BVG 50/40W05
Price:
Bore diameter: 1½″ (reduced bore); Max inlet pressure: 500 mbar (7.25 psig); Connection fitting: between two ANSI flanges (2″)
BVG 65/50W05
Price:
Bore diameter: 2″ (reduced bore); Max inlet pressure: 500 mbar (7.25 psig); Connection fitting: between two ANSI flanges (2½″)
BVG 80/65W05
Price:
Bore diameter: 2½″ (reduced bore); Max inlet pressure: 500 mbar (7.25 psig); Connection fitting: between two ANSI flanges (3″)
BVG 100/80W05
Price:
Bore diameter: 3″ (reduced bore); Max inlet pressure: 500 mbar (7.25 psig); Connection fitting: between two ANSI flanges (4″)
BVG 40/25W05
Price:
Bore diameter: 1″ (2 × reduced bore); Max inlet pressure: 500 mbar (7.25 psig); Connection fitting: between two ANSI flanges (1½″)
BVG 50/32W05
Price:
Bore diameter: 1¼″ (2 × reduced bore); Max inlet pressure: 500 mbar (7.25 psig); Connection fitting: between two ANSI flanges (2″)
BVG 65/40W05
Price:
Bore diameter: 1½″ (2 × reduced bore); Max inlet pressure: 500 mbar (7.25 psig); Connection fitting: between two ANSI flanges (2½″)
BVG 80/50W05
Price:
Bore diameter: 2″ (2 × reduced bore); Max inlet pressure: 500 mbar (7.25 psig); Connection fitting: between two ANSI flanges (3″)
BVG 100/65W05
Price:
Bore diameter: 2½″ (2 × reduced bore); Max inlet pressure: 500 mbar (7.25 psig); Connection fitting: between two ANSI flanges (4″)
BVG ACC 01
Price:
Adapter set BVG with square shaft /B
BVG ACC 02
Price:
Adapter set BVG with free shaft end /B
BVG ACC 03
Price:
Adapter set BVG with manual adjustment /B
