Variable Gas/Air Ratio Regulator GIKH

GIKH regulators allow precise, repeatable control of gas/air ratios on preheated air combustion systems where air density is affected by temperature changes. They can be used as direct gas pressure controllers or as loading signal generators for conventional gas/air ratio regulators. They are also suitable for cold air combustion systems where the available gas pressure is higher than the combustion air pressure, avoiding the necessity of troublesome, high maintenance bleeders. They are suitable for natural, LP, and clean coke oven or bio-gas. Special models are available for controlling air pressure.

Features

• For maintaining constant gas/air ratios on preheated air combustion systems
• Precise pressure regulation over wide turndown ranges
• Compensated for varying inlet pressures
• Long life, low maintenance

	Documentation Manufacturer's Product Brochure Manufacturer's Operating Instructions Manufacturer's Technical Sheet
	Ordering Information Model Connection Max Inlet pressure Pressure Test point Bypass Screw Price (US List) Order Now GIKH 25TN02-5 1" NPT internal thread 3 psig (200 mbar) In Outlet No $970

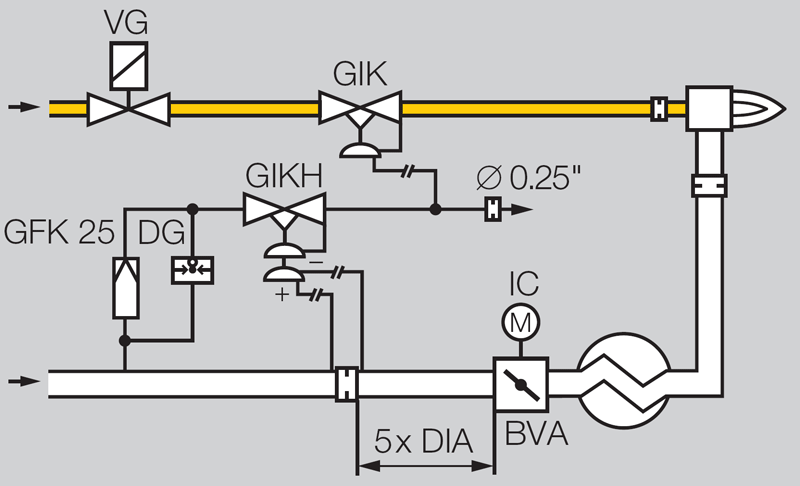

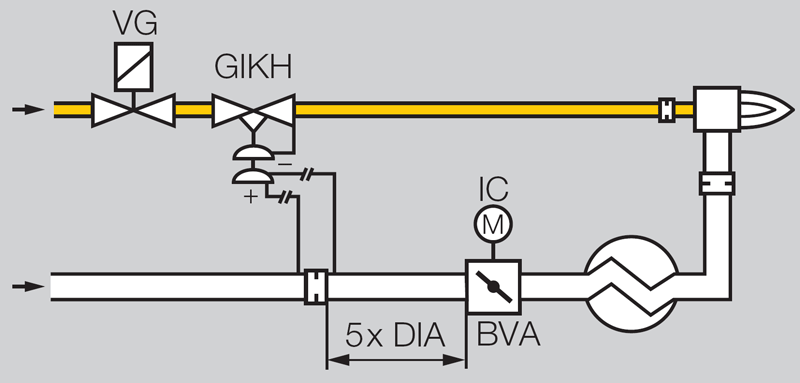

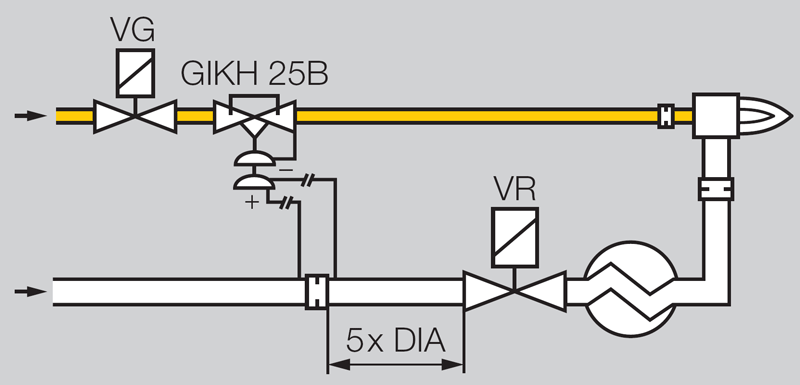

	Applications Click on images for close-up view. Propotional control/Small diameter piping Continuous air/gas control for hot air operation for single or multiple burner applications. Burners fitted downstream of the measuring orifices must not be switched off individually. Maximum Gas pipe size 1". Propotional control/Large diameter piping Continuous air/gas control for hot air operation for single or multiple burner applications. Burners fitted downstream of the measuring orifices must not be switched off individually. For piping size greater than 1". Also used for cold air systems where gas pressure is lower than regulator impulse pressure. High/Low/Off control For hot air operation for single burner application. Max. gas pipe size 1".
	Specifications Operating Limits Ambient temperature range: -4° F to 158° F (-20° C to 70° C) Maximum inlet pressure: 3 psig (200 mbar) Maximum operational inlet-to-outlet differential pressure: 1.5 psig (100 mbar) Combustion air loading(+) to air loading(-) pressure: 7" WC (17.5 mbar) Outlet pressure range: Up to 28" WC (70 mbar)   Mechanical Data Available pipe sizes: NPT-threaded: 1"   Contruction Materials   GIKH regulators have pressure die-cast aluminum alloy valve bodies and diaphragm housings. Valve seats are precision-machined from aluminum, and valve discs are aluminium with vulcanized nitrile rubber seals. Diaphragms are nitrile rubber.
