Gas/Air Ratio Regulator GIK

GIK regulators hold constant gas/air ratios on nozzle mix and premix burner systems. They are designed and built with precise internal tolerances, and they provide highly accurate, repeatable pressure tracking over the turndown range of the burner system. They are suitable for natural, LP, and clean, dry bio-gas. Special GIK models are available for controlling air pressure.

Features

• For maintaining constant gas/air ratios
• Cross-connected operation with modulating or high-low control of nozzle mix burners
• Zero regulator operation for premix burners
• Precise pressure regulation over wide turndown ranges
• Low maintenance
• Valve seat design for consistent low-fire repeatability
• Balanced double diaphragm design allows regulator to operate over a wide range of inlet pressures while minimally affecting outlet pressure
• CE certified models available

	Documentation Manufacturer's Product Brochure Manufacturer's Operating Instructions Manufacturer's Technical Sheet
	Ordering Information Model Connection Max Inlet pressure Pressure Test point Bypass Screw Price (US List) Order Now GIK 15TN02-5 ½" NPT internal thread 3 psig (200 mbar) In Outlet No $164 GIK 20TN02-5 ¾" NPT internal thread 3 psig (200 mbar) In Outlet No $173 GIK 25TN02-5 1" NPT internal thread 3 psig (200 mbar) In Outlet No $192 GIK 40TN02-5 1½" NPT internal thread 3 psig (200 mbar) In Outlet No $287 GIK 50TN02-5 2" NPT internal thread 3 psig (200 mbar) In Outlet No $375 GIK 65TA02-3 2½" ANSI flange 3 psig (200 mbar) In Inlet and Outlet No $1339 GIK 80TA02-3 3" ANSI flange 3 psig (200 mbar) In Inlet and Outlet No $1690 GIK 100TA02-3 3" ANSI flange 3 psig (200 mbar) In Inlet and Outlet No $2577 GIK 15TN02-5B ½" NPT internal thread 3 psig (200 mbar) In Outlet Yes $164 GIK 20TN02-5B ¾" NPT internal thread 3 psig (200 mbar) In Outlet Yes $173 GIK 25TN02-5B 1" NPT internal thread 3 psig (200 mbar) In Outlet Yes $192 GIK 40TN02-5B 1½" NPT internal thread 3 psig (200 mbar) In Outlet Yes $287 GIK 50TN02-5B 2" NPT internal thread 3 psig (200 mbar) In Outlet Yes $375 For all other configurations Contact Combustion 911 Accessories Model Description Price (US List) Order Now GIK ACC 01 Variable Bypass GIK for models 15-25 (not available for 40 and 50) $41

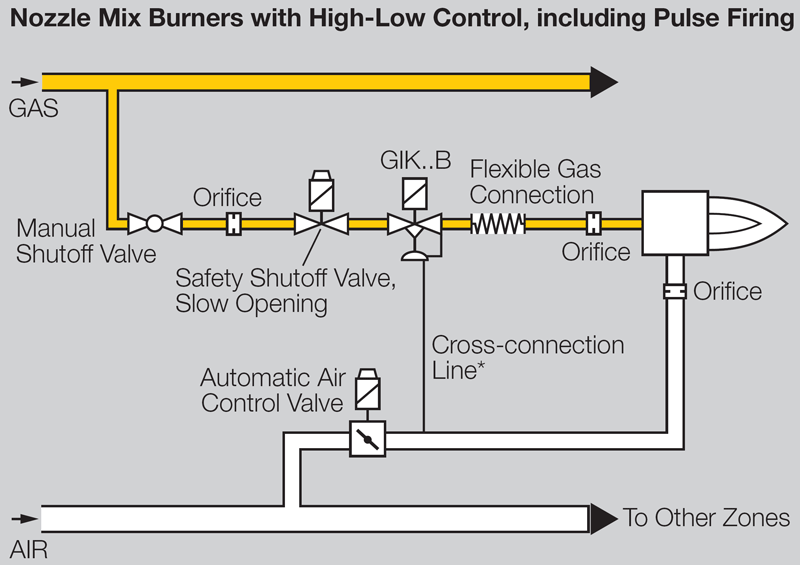

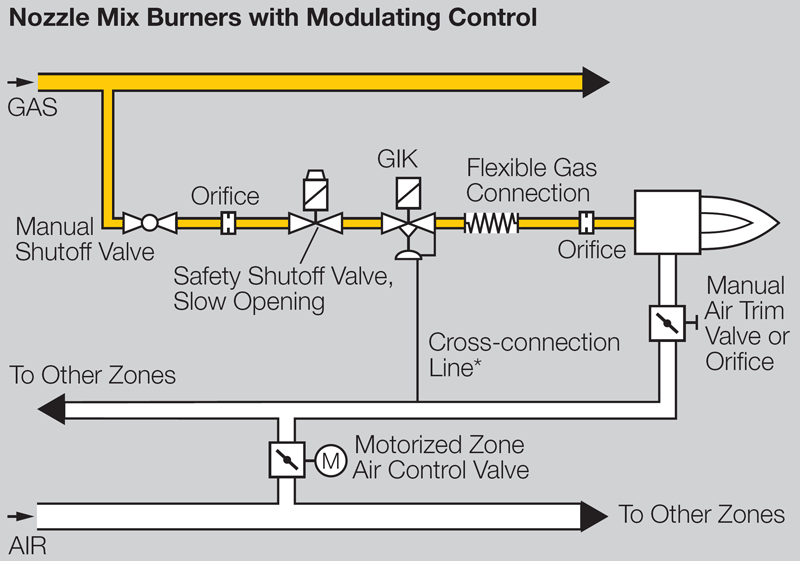

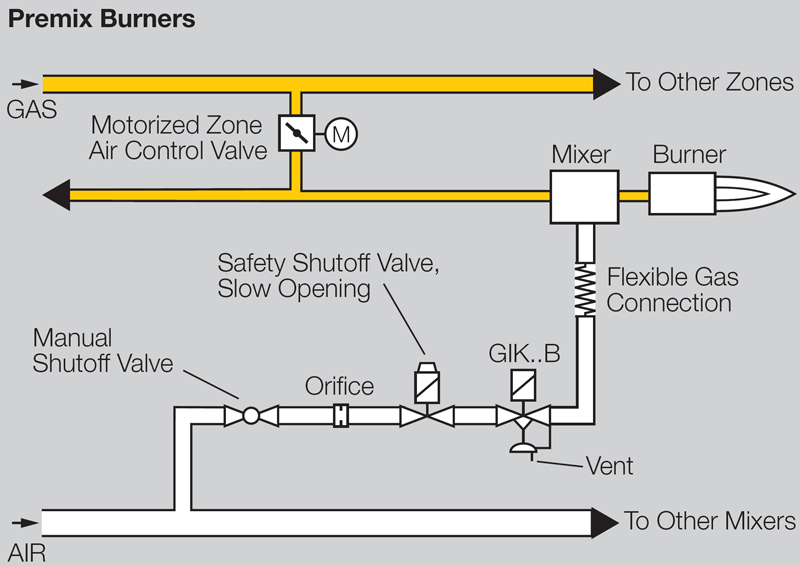

	Applications Click on images for close-up view. Nozzle Mix Burner with High/Low Control including Pulse-firing When used as cross-connected regulator for nozzle mix burners, GIK regulator provide outlet gas pressure at a 1:1 pressure ratio with air loading. For leaner or richer low fire ratios, the bias spring can be adjusted to provide an outlet pressure up to 1.2" WC (3 mbar) higher or lower than the loading pressure. Nozzle Mix Burner with Modulating Control The cross connection line should be no smaller than ¼" pipe or ⅜” OD tubing, as short and with as few bends as possible. Premix Burners If burner is sealed in and combustion chamber pressure is other than zero, connect vent to combustion chamber. Otherwise leave it open to atmosphere.
	Specifications Operating Limits Ambient temperature range: GIK 15–50: -4 °F to +158 °F (-20 °C to +70 °C), GIK 65–100: +5 °F to +140 °F (-15 °C to +60 °C) Maximum inlet pressure: 3 psig (200 mbar) Maximum operational inlet-to-outlet differential pressure: 1.5 psig (100 mbar) Combustion air loading pressure: 0.2” to 48” wc (0.5 to 120 mbar) Outlet pressure range: 0.1” to 47.6” wc (0.2 to 120 mbar)   Mechanical Data Available pipe sizes: NPT-threaded: ½", ¾", 1", 1½", 2" ANSI flange: 2½", 3", 4"   Contruction Materials   GIK regulators have pressure die-cast/sand-cast aluminum alloy valve bodies and diaphragm housings. Diaphragms and sealing elements are nitrile rubber. GIK 15–50: valve element: plastic, valve disc sealing: NBR, valve seat: aluminium. GIK..B models have pre-drilled bypass screws. Bypass screws are brass. GIK 65–100: valve disc: aluminium with vulcanised NBR, valve seat: aluminium.
