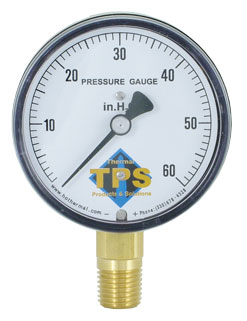

TPS Pressure Gauge

The TPS Low Pressure Gauge accurately measures extreme low pressure conditions. This pressure gauge employs a diaphragm capsule-sensing element to measure the low pressure. Case material is drawn steel with brass-wetted parts.

Features

• ¼" Male NPT thread
• Measures 0-60" W.C.
• Rugged Steel Case
• ±1.6% Full Scale Accuracy
• 316L stainless steel diaphragm capsule
• Brass socket
• Maximum Temperature of 140°F
• Other sizes and specifications available

	Documentation Manufacturer's Product Brochure
	Ordering Information Model Measuring Range Connection Diameter of Scale Price (US List) Order Now PG0-60WC 0 - 60" W.C. ¼" NPT male thread 2.5 inches $60 Accessories Model Description Price (US List) Order Now DH 8TN40 Manual push-to-test cock ¼" NPT thread. For protection of a pressure gauge against pressure fluctuations, for gas and air pe max. 60 psig (4 bar). $40 DH 15TN40 Manual push-to-test cock ½" NPT thread. For protection of a pressure gauge against pressure fluctuations, for gas and air pe max. 60 psig (4 bar). $42 DH ACC 01 Pressure gauge seal ¼” - Cu $4 DH ACC 02 Pressure gauge seal ½’’ - Cu $4
	Applications Currently Unavailable
	Specifications General Dial Size: 2.44 inches Accuracy: ±1.6% Connection: ¼" NPT male Case: Drawn steel, black finished, stem-mounted flangeless Window: Polycarbonate, snap-in Dial Face: Aluminum Maximum Temperature: 140°F (65°C)
