Solenoid Valve for Gas VAS

Kromschroder solenoid valves for gas VAS and double solenoid valves VCS are designed for safeguarding and controlling the air and gas supply to gas burners and gas appliances. For use in gas control and safety systems in all sectors of the iron, steel, glass, and ceramics industries, also in commercial heat generation, such as the packaging, paper, and food industries.

Features

• Safety shut-off for gaseous fuels, a further development of the solenoid valves for gas VG and VS
• Suitable for a max. inlet pressure of 500 mbar (500 hPa/7 psig)
• Easy installation into a system
• Compact design saves space
• No extra valve required owing to integrated flow adjustment
• Check indication by blue LED
• Position indicator with integral visual indicator
• Suitable for high-duty cycling
• Higher flow rates with the same nominal size
• EC type-tested and certified
• FM, CSA, UL and AGA approved (230 V AC, 120 V AC, 24 V DC)
• Part of the Valvario series

	Documentation Manufacturer's Product Brochure Manufacturer's Operating Instructions (VAS and VCS) Manufacturer's Operating Instructions (VAS 6-9, VCS 6-9) Manufacturer's Technical Information
	Ordering Information (VAS 1, VAS 2, VAS 3) Valvario Size 1 (VAS 1) Model Valvario Size Connection Open/Close Speeds Visual Indicator Flow Direction Mains Voltage Price (US List) Order Now VAS 1T10/NQ 1 Flanged ⅜” NPT quick opening and closing No Either 120 V AC, 50/60 Hz $188 VAS 1T15/NQ 1 Flanged ½” NPT quick opening and closing No Either 120 V AC, 50/60 Hz $188 VAS 1T20/NQ 1 Flanged ¾” NPT quick opening and closing No Either 120 V AC, 50/60 Hz $224 VAS 1T25/NQ 1 Flanged 1” NPT quick opening and closing No Either 120 V AC, 50/60 Hz $234 VAS 1T10/LQ 1 Flanged ⅜” NPT slow opening, quick closing No Either 120 V AC, 50/60 Hz $236 VAS 1T15/LQ 1 Flanged ½” NPT slow opening, quick closing No Either 120 V AC, 50/60 Hz $236 VAS 1T20/LQ 1 Flanged ¾” NPT slow opening, quick closing No Either 120 V AC, 50/60 Hz $281 VAS 1T25/LQ 1 Flanged 1” NPT slow opening, quick closing No Either 120 V AC, 50/60 Hz $281 VAS 1T10/NQSL 1 Flanged ⅜” NPT quick opening and closing Yes Left 120 V AC, 50/60 Hz $321 VAS 1T15/NQSL 1 Flanged ½” NPT quick opening and closing Yes Left 120 V AC, 50/60 Hz $321 VAS 1T20/NQSL 1 Flanged ¾” NPT quick opening and closing Yes Left 120 V AC, 50/60 Hz $356 VAS 1T25/NQSL 1 Flanged 1” NPT quick opening and closing Yes Left 120 V AC, 50/60 Hz $366 VAS 1T10/LQSL 1 Flanged ⅜” NPT slow opening, quick closing Yes Left 120 V AC, 50/60 Hz $368 VAS 1T15/LQSL 1 Flanged ½” NPT slow opening, quick closing Yes Left 120 V AC, 50/60 Hz $368 VAS 1T20/LQSL 1 Flanged ¾” NPT slow opening, quick closing Yes Left 120 V AC, 50/60 Hz $413 VAS 1T25/LQSL 1 Flanged 1” NPT slow opening, quick closing Yes Left 120 V AC, 50/60 Hz $413 VAS 1T10/NQSR 1 Flanged ⅜” NPT quick opening and closing Yes Right 120 V AC, 50/60 Hz $321 VAS 1T15/NQSR 1 Flanged ½” NPT quick opening and closing Yes Right 120 V AC, 50/60 Hz $321 VAS 1T20/NQSR 1 Flanged ¾” NPT quick opening and closing Yes Right 120 V AC, 50/60 Hz $356 VAS 1T25/NQSR 1 Flanged 1” NPT quick opening and closing Yes Right 120 V AC, 50/60 Hz $366 VAS 1T10/LQSR 1 Flanged ⅜” NPT slow opening, quick closing Yes Right 120 V AC, 50/60 Hz $368 VAS 1T15/LQSR 1 Flanged ½” NPT slow opening, quick closing Yes Right 120 V AC, 50/60 Hz $368 VAS 1T20/LQSR 1 Flanged ¾” NPT slow opening, quick closing Yes Right 120 V AC, 50/60 Hz $413 VAS 1T25/LQSR 1 Flanged 1” NPT slow opening, quick closing Yes Right 120 V AC, 50/60 Hz $413 VAS 1T10/NK 1 Flanged ⅜” NPT quick opening and closing No Either 24 V DC $191 VAS 1T15/NK 1 Flanged ½” NPT quick opening and closing No Either 24 V DC $191 VAS 1T20/NK 1 Flanged ¾” NPT quick opening and closing No Either 24 V DC $226 VAS 1T25/NK 1 Flanged 1” NPT quick opening and closing No Either 24 V DC $235 For all other models and configurations Contact Combustion 911 Valvario Size 2 (VAS 2) Model Valvario Size Connection Open/Close Speeds Visual Indicator Flow Direction Mains Voltage Price (US List) Order Now VAS 2T25/NQ 2 Flanged 1” NPT quick opening and closing No Either 120 V AC, 50/60 Hz $301 VAS 2T32/NQ 2 Flanged 1¼” NPT quick opening and closing No Either 120 V AC, 50/60 Hz $301 VAS 2T40/NQ 2 Flanged 1½” NPT quick opening and closing No Either 120 V AC, 50/60 Hz $309 VAS 2T50/NQ 2 Flanged 2” NPT quick opening and closing No Either 120 V AC, 50/60 Hz $309 VAS 2T25/LQ 2 Flanged 1” NPT slow opening, quick closing No Either 120 V AC, 50/60 Hz $348 VAS 2T32/LQ 2 Flanged 1¼” NPT slow opening, quick closing No Either 120 V AC, 50/60 Hz $348 VAS 2T40/LQ 2 Flanged 1½” NPT slow opening, quick closing No Either 120 V AC, 50/60 Hz $357 VAS 2T50/LQ 2 Flanged 2” NPT slow opening, quick closing No Either 120 V AC, 50/60 Hz $357 VAS 2T25/NQSL 2 Flanged 1” NPT quick opening and closing Yes Left 120 V AC, 50/60 Hz $449 VAS 2T32/NQSL 2 Flanged 1¼” NPT quick opening and closing Yes Left 120 V AC, 50/60 Hz $449 VAS 2T40/NQSL 2 Flanged 1½” NPT quick opening and closing Yes Left 120 V AC, 50/60 Hz $458 VAS 2T50/NQSL 2 Flanged 2” NPT quick opening and closing Yes Left 120 V AC, 50/60 Hz $458 VAS 2T25/LQSL 2 Flanged 1” NPT slow opening, quick closing Yes Left 120 V AC, 50/60 Hz $503 VAS 2T32/LQSL 2 Flanged 1¼” NPT slow opening, quick closing Yes Left 120 V AC, 50/60 Hz $503 VAS 2T40/LQSL 2 Flanged 1½” NPT slow opening, quick closing Yes Left 120 V AC, 50/60 Hz $512 VAS 2T50/LQSL 2 Flanged 2” NPT slow opening, quick closing Yes Left 120 V AC, 50/60 Hz $512 VAS 2T25/NQSR 2 Flanged 1” NPT quick opening and closing Yes Right 120 V AC, 50/60 Hz $449 VAS 2T32/NQSR 2 Flanged 1¼” NPT quick opening and closing Yes Right 120 V AC, 50/60 Hz $449 VAS 2T40/NQSR 2 Flanged 1½” NPT quick opening and closing Yes Right 120 V AC, 50/60 Hz $458 VAS 2T50/NQSR 2 Flanged 2” NPT quick opening and closing Yes Right 120 V AC, 50/60 Hz $458 VAS 2T25/LQSR 2 Flanged 1” NPT slow opening, quick closing Yes Right 120 V AC, 50/60 Hz $503 VAS 2T32/LQSR 2 Flanged 1¼” NPT slow opening, quick closing Yes Right 120 V AC, 50/60 Hz $503 VAS 2T40/LQSR 2 Flanged 1½” NPT slow opening, quick closing Yes Right 120 V AC, 50/60 Hz $512 VAS 2T50/LQSR 2 Flanged 2” NPT slow opening, quick closing Yes Right 120 V AC, 50/60 Hz $512 VAS 2T25/NK 2 Flanged 1” NPT quick opening and closing No Either 24 V DC $311 VAS 2T32/NK 2 Flanged 1¼” NPT quick opening and closing No Either 24 V DC $311 VAS 2T40/NK 2 Flanged 1½” NPT quick opening and closing No Either 24 V DC $320 VAS 2T50/NK 2 Flanged 2” NPT quick opening and closing No Either 24 V DC $320 For all other models and configurations Contact Combustion 911 Valvario Size 3 (VAS 3) Model Valvario Size Connection Open/Close Speeds Visual Indicator Flow Direction Mains Voltage Price (US List) Order Now VAS 3T40/NQ 3 Flanged 1½” NPT quick opening and closing No Either 120 V AC, 50/60 Hz $424 VAS 3T50/NQ 3 Flanged 2” NPT quick opening and closing No Either 120 V AC, 50/60 Hz $424 VAS 3T65/NQ 3 Flanged 2½” NPT quick opening and closing No Either 120 V AC, 50/60 Hz $453 VAS 3T40/LQ 3 Flanged 1½” NPT slow opening, quick closing No Either 120 V AC, 50/60 Hz $476 VAS 3T50/LQ 3 Flanged 2” NPT slow opening, quick closing No Either 120 V AC, 50/60 Hz $476 VAS 3T65/LQ 3 Flanged 2½” NPT slow opening, quick closing No Either 120 V AC, 50/60 Hz $504 VAS 3T40/NQSL 3 Flanged 1½” NPT quick opening and closing Yes Left 120 V AC, 50/60 Hz $571 VAS 3T50/NQSL 3 Flanged 2” NPT quick opening and closing Yes Left 120 V AC, 50/60 Hz $571 VAS 3T65/NQSL 3 Flanged 2½” NPT quick opening and closing Yes Left 120 V AC, 50/60 Hz $600 VAS 3T40/LQSL 3 Flanged 1½” NPT slow opening, quick closing Yes Left 120 V AC, 50/60 Hz $624 VAS 3T50/LQSL 3 Flanged 2” NPT slow opening, quick closing Yes Left 120 V AC, 50/60 Hz $624 VAS 3T65/LQSL 3 Flanged 2½” NPT slow opening, quick closing Yes Left 120 V AC, 50/60 Hz $654 VAS 3T40/NQSR 3 Flanged 1½” NPT quick opening and closing Yes Right 120 V AC, 50/60 Hz $571 VAS 3T50/NQSR 3 Flanged 2” NPT quick opening and closing Yes Right 120 V AC, 50/60 Hz $571 VAS 3T65/NQSR 3 Flanged 2½” NPT quick opening and closing Yes Right 120 V AC, 50/60 Hz $600 VAS 3T40/LQSR 3 Flanged 1½” NPT slow opening, quick closing Yes Right 120 V AC, 50/60 Hz $624 VAS 3T50/LQSR 3 Flanged 2” NPT slow opening, quick closing Yes Right 120 V AC, 50/60 Hz $624 VAS 3T65/LQSR 3 Flanged 2½” NPT slow opening, quick closing Yes Right 120 V AC, 50/60 Hz $654 VAS 3T40/NK 3 Flanged 1½” NPT quick opening and closing No Either 24 V DC $432 VAS 3T50/NK 3 Flanged 2” NPT quick opening and closing No Either 24 V DC $432 VAS 3T65/NK 3 Flanged 2½” NPT quick opening and closing No Either 24 V DC $462 VAS 3T40/NKSR 3 Flanged 1½” NPT quick opening and closing Yes Right 24 V DC $571 VAS 3T50/NKSR 3 Flanged 2” NPT quick opening and closing Yes Right 24 V DC $571 VAS 3T65/NKSR 3 Flanged 2½” NPT quick opening and closing Yes Right 24 V DC $600 VAS 3T40/NKSL 3 Flanged 1½” NPT quick opening and closing Yes Left 24 V DC $571 VAS 3T50/NKSL 3 Flanged 2” NPT quick opening and closing Yes Left 24 V DC $571 VAS 3T65/NKSL 3 Flanged 2½” NPT quick opening and closing Yes Left 24 V DC $600 For all other models and configurations Contact Combustion 911 Accessories Model Description Price (US List) Order Now VAS ACC 1 Test Point, ¼” NPT $10

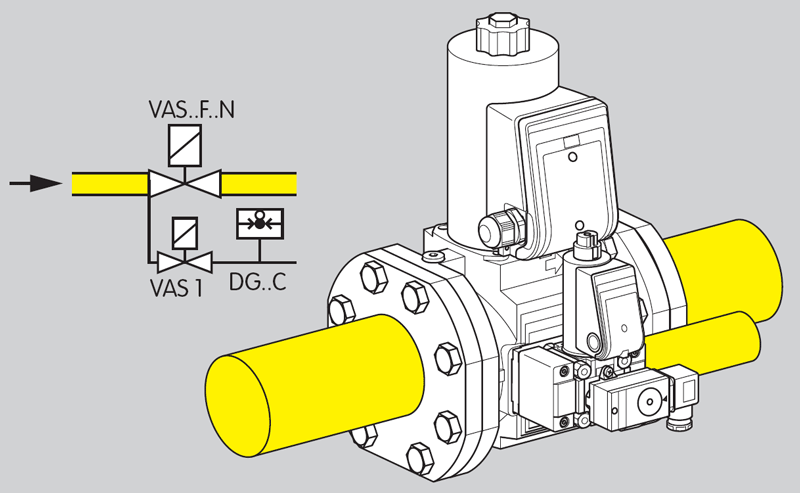

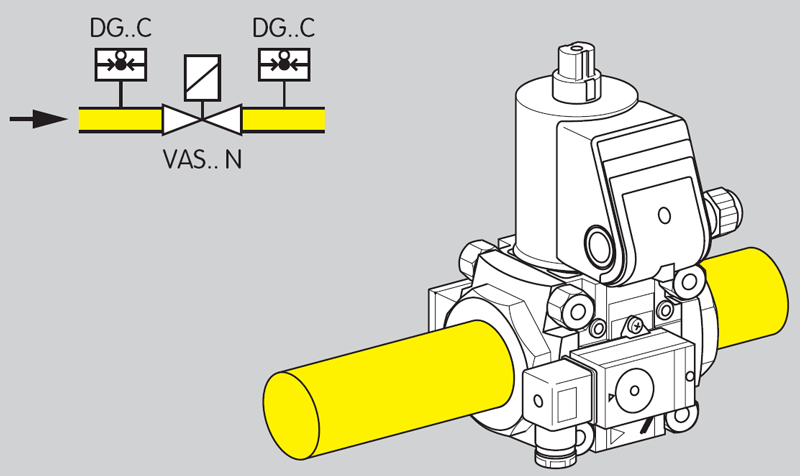

	Applications Click on images for close-up view. Solenoid valve for gas VAS 1 – 3 Double solenoid valve VCS 1 – 3 Threaded flange for pipe connections from DN 10 to 65, flanged connection for sizes 2 and 3 for pipe connections DN 40 and 50. Modularly configurable with:    – Damping unit    – Position indicator    – Plug (with or without socket)    – Pressure test points    – Pressure switch DG..C for inlet and/or outlet pressure    – Tightness control TC    – Bypass/pilot gas valve    – Attachment block for the connection of a pressure gauge, for example. Gas solenoid valve with inlet and outlet pressure switch VAS..N, quick opening, pressure switch DG..C for inlet pressure pe and outlet pressure pa Solenoid valve for gas VAS 6 – 9 Double solenoid valve VCS 6 – 9 Gas solenoid valve and double solenoid valve with flanged connection (ISO or ANSI) for pipe connections from DN 65 to 125. Modularly configurable with:    – Damping unit for VAS/VCS 6 – 8    – Position indicator    – Plug    – Plug with socket VCS 6 – 9 with two threaded connections for:    – Screw plugs    – Pressure test points    – Pressure switch DG..C for inlet/interspace pressure    – Tightness control TC Solenoid valve for gas VAS 6 – 9 Double solenoid valve VCS 6 – 9 with connection for adapter plates Gas solenoid valve and double solenoid valve with flanged connection (ISO or ANSI) for pipe connections from DN 65 to 125. Modularly configurable with:    – Damping unit for VAS/VCS 6–8    – Position indicator    – Plug    – Plug with socket With adapter plates, expandable with:    – Pressure switch DG..C VAS 6 – 9: for inlet/outlet pressure VCS 6 – 9: for interspace/outlet pressure    – Pressure test points    – Screw plug    – Bypass or pilot gas valve VAS VCS 6 – 9 With two threaded connections for:    – Screw plugs    – Pressure test points    – Pressure switch DG..C for inlet/interspace pressure    – Tightness control TC Expandable with relief line adapter (1½ NPT, Rp 1) for relief line. Gas solenoid valve with pilot gas valve and pressure switch VAS..F..N: quick opening, quick closing VAS 1 as pilot gas valve with pressure switch DG..C.
	Specifications General Specifications Types of gas: Natural gas, LPG (gaseous), biologically produced methane (max. 0.1 %-by-vol. H2S) or air; other gases on request. The gas must be dry in all temperature conditions and must not condense. Maximum inlet pressure pe: 500 mbar (500 hPa/7 psig). Non operational pressure: FM approved (230 V AC, 120 V AC, 24 V DC): 700 mbar (700 hPa/10 psig) CSA approved (230 V AC, 120 V AC, 24 V DC): 350 mbar (350 hPa/5 psig) Adjustment of the start gas rate: 0 to 70% Flow adjustment limits the maximum flow volume between 20 and 100%. On VAS 1 – 3, the setting can be monitored on an indicator. Opening times: VAS../N quick opening: ≤ 1 s VAS../L slow opening: up to 30 s Closing time: VAS../N, VAS../L quick closing: < 1 s. Ambient temperature: -20 to +60°C (-4 to +140°F), no condensation permitted Storage temperature: -20 to +40 °C (-4 to +104 °F), no condensation permitted Safety valve: Class A Group 2 pursuant to EN 13611 and EN 161, Factory Mutual (FM) Research Class (230 V AC, 120 V AC, 24 V DC): 7410 and 7411, ANSI Z21.21 and CSA 6.5, ANSI Z21.21 and CSA 6.5. Mains voltage: 230 V AC, +10/-15%, 50/60 Hz; 200 V AC, +10/-15%, 50/60 Hz; 120 V AC, +10/-15%, 50/60 Hz; 100 V AC, +10/-15%, 50/60 Hz; 24 V DC, ±20 %; VAS/VCS 9: 120 – 230 V~, +10/-15 %, 50/60 Hz. Cable gland: M20 x 1.5 Electrical connection: max. 2.5 mm2 (AWG 12) or plug with socket to EN 175301-803 Power consumption: Type 24 V DC (W) 100 V AC (W) 120 V AC (W) 200 V AC (W) 230 V AC (W) VAS 1 29 33 30 33 30 VAS 2 46 53 54 54 53 VAS 3 46 53 54 54 53 VAS 6 70 - 69 - 63 VAS 7 75 - 90 - 86 VAS 8 99 - 117 - 113 VAS 9 - - 200 (15*) - 200 (15*) VCS 1 58 66 60 66 60 VCS 2 92 106 108 108 106 VCS 3 92 106 108 108 106 VCS 6 140 - 126 - 126 VCS 7 150 - 180 - 166 VCS 8 198 - 264 - 226 VCS 9 - - 400 (30*) - 400 (30*) *After opening Enclosure: IP 65 Duty cycle: 100% Power factor of the solenoid coil: cos φ = 1. Switching frequency: VAS..N: Arbitrary, VAS..L: There must be a period of 20 seconds between switching off and on again so that the damping is fully effective. Valve housing: Aluminium, Valve seal: NBR Connection flanges: VAS/VCS 1-3 with internal thread: NPT pursuant to ANSI/ASME VAS/VCS 6-9 with ANSI flange pursuant to ASA. Position indicator contact rating: Type Voltage Min. current (resistive load) Max. current (resistive load) VAS..S, VCS..S 12 – 250 V AC, 50/60 Hz 100 mA 3 A VAS..G, VCS..G 12 – 125 V AC, 50/60 Hz 2 mA 0.1 A Position indicator switching frequency: max. 5× per minute. Switching Cycles: Switching Current (A) Switching cycles* cos φ = 1 cos φ = 0.6 0.1 500,000 500,000 0.5 300,000 250,000 1 200,000 100,000 3 100,000 - * Limited to max. 200,000 cycles for heating systems. VAS/VCS 9: Switching frequency: max. 1× per minute. Max. temperature of solenoid coil: +20°C (+68°F) above ambient temperature. Current consumption at 20°C (68°F): Pick-up current: 1.8 A; Holding current: 0.3 A.
