Solenoid Valve VGP

Solenoid Valve VGPVGP solenoid valves are normally closed solenoid-operated valves for on/off control of natural gas, LP, clean biogas, and air flow. They are widely used as gas safety shut-off valves for industrial and commercial combustion systems.

Features

  • For tight shutoff of fuel gases and air on industrial and commercial applications
  • Designed for continuous on-off cycling
  • Life expectancy of 2 million cycles
  • DC system prevents overheating of solenoid coil, and high inrush current
  • Low maintenance
  • CE certified models available
  • Part of the Valvario series
  • FM and UL approved
Documentation for Solenoid Valve VGP

Documentation

Manufacturer's Product Brochure
Manufacturer's Operating Instructions
Manufacturer's Technical Sheet

Ordering information for Solenoid Valve VGP

Ordering Information

Model Nominal Diameter Connection Mains Voltage Max Inlet Pressure Rectifier Price
(US List)		 Order Now Qty Left in Stock*
VGP 10TN02Q6 10 ½" NPT internal thread 120 V AC; 50/60 Hz 3 psig (200 mbar) Adapter and Plug $109 Buy the VGP solenoid valve 1
VGP 25TN01Q6 25 1" NPT internal thread 120 V AC; 50/60 Hz 2.2 psig (150 mbar) Adapter and Plug $142 Buy the VGP solenoid valve 2

*These items are being discontinued. Once gone - they're gone for good! No more will be manufactured.

Applications for Solenoid Valve VGP

Applications

Click on images for close-up view.

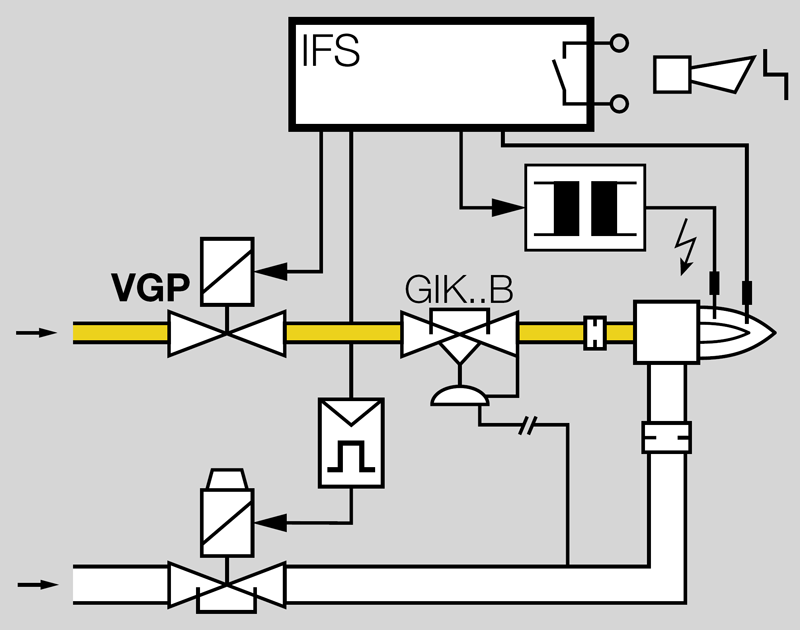

Application for solenoid valve VGP VGP solenoid valves are normally closed, solenoid-operated valves for on/off control of natural gas, LP, clean biogas and air flow. They are widely used as gas safety shut-off valves for industrial and commercial combustion systems. Shown is an example of frequency control with VGP solenoid valve.

Specifications for Solenoid Valve VGP

Specifications

Operating Limits
Ambient temperature range: -4° F to 140° F (-20° C to 60° C) ULus
-4° F to 104° F (-20° C to 40° C) ULca
Maximum inlet pressure: 3 psig (200 mbar) (⅜” to ½" models) or
2 psig (150 mbar) (¾" to 1" models)
Maximum static line pressure: 30 psig (2.1 bar) (with valve closed)
Opening time: fast opening – less than 0.5 seconds
Closing time: less than 1 second

Electrical Data
Supply voltage: 120 Vac; +10/-15%; 50/60 Hz
Duty cycle: Continuous
Solenoid coil insulation: Class F, UL Class A
Solenoid coil power factor: cos φ = 1
Power Consumption: Models 10, 15: 26 watts
Models 20, 25: 35 watts

Materials of Construction
Valve housing: Pressure die cast aluminium
O-rings: Nitrile viton rubber
Valve disk seal: Nitrile viton rubber
