Control Valve RV

Control Valve RVControl Valve RV and Control Valve with Solenoid Valve RVS are used for controlling the flow rate in modulating-controlled combustion processes that require a large control ratio. It is suitable for use in an electronic or mechanical air/gas ratio control system.

Fields of application include thermal incineration, the ceramics industry, or O2 control on gas engines in combined heating and power stations.

The valve adjusts the burner capacity precisely. It is controlled by a three-point step controller or, in the case of the RV..E, by a continuous signal (e.g. 4 to 20 mA). This version features an electronic positioning control that ensures high control accuracy.

The RVS also integrates a solenoid valve so that the gas is safeguarded and controlled without additional pressure loss.

Features

  • Large control ratio (100:1)
  • Largely linear control behaviour
  • High control accuracy
  • Can be controlled by three-point step signal (standard) or continuous signal (RV..E)
  • Simple automatic/manual mode switchover for easy start-up
  • External-read-off position indication
  • Four infinitely adjustable switching cams as standard, precisely adjustable
  • Compact design
  • Position feedback signal
  • MODULINE connection available
  • EC type-tested and certified
  • FM approved
Documentation for Control Valve RV

Documentation

Manufacturer's Product Brochure
Manufacturer's Operating Instructions

Ordering information for Control Valve RV

Ordering Information

Model Size Connection Valve Seat pe max. Control Price
(US List)		 Order Now
RV 80/OA02M60S1-9 DN 80 ANSI flange O 200 mbar 3-point step $2282 Buy the RV Control Valve
RV 350/IML03M60E-9 size 3, DN 50 Moduline I 360 mbar continuous $1926 Buy the RV Control Valve
For all other configurations and assembly options Contact Combustion 911

Accessories

Model Description Price
(US List)		 Order Now
RV/RVS ACC 01 RP RV B 150 OHM $76 Buy the RV/RVS Control Valve Accessory
RV/RVS ACC 02 RP RV B 1000 OHM $76 Buy the RV/RVS Control Valve Accessory
RV/RVS ACC 03 RS RV B 4-20 mA $200 Buy the RV/RVS Control Valve Accessory
For all other configurations and assembly options Contact Combustion 911

Applications for Control Valve RV

Applications

Click on images for close-up view.

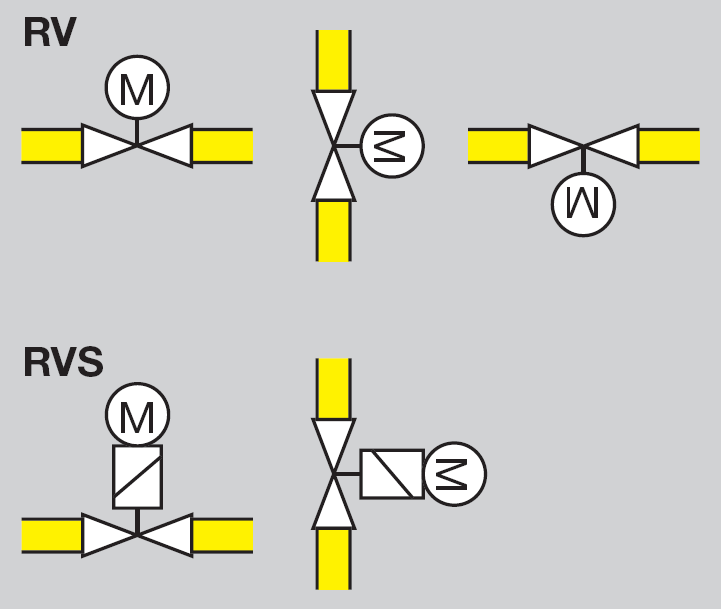

Application for control valves RV and RVS Installation

Fitting position: RV: any; RVS: vertical or horizontal, not upside down.

Do not use the control as a lever when installing the control valve in the pipework. Use a suitable spanner.

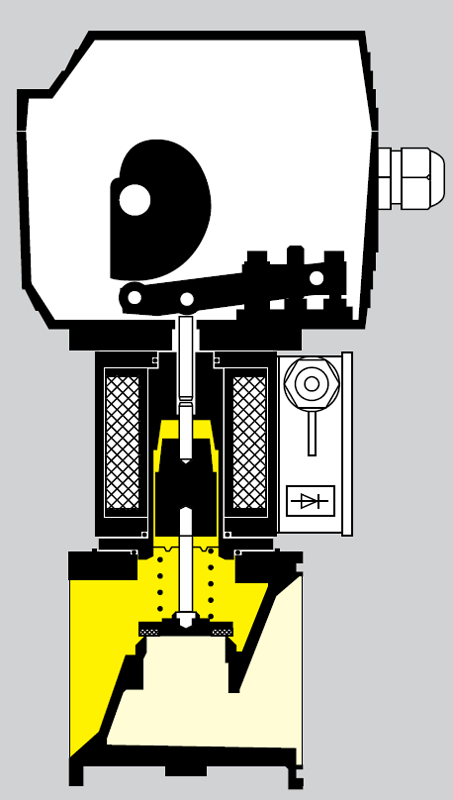

Application for control valves RV and RVS Function

The solenoid valve in the RVS opens when the mains voltage is applied. Control valve RV/RVS opens when terminal 4 is activated (100%), and closes when terminal 5 is activated (0%).

When no voltage is applied, the control valve stops in the current position.

The control behaviour is largely linear over the entire control range. The minimum and maximum flow rate is adjusted by means of two infinitely adjustable switching cams. Intermediate positions can be scanned or external devices can be controlled via two (optionally four) floating additional switches. An additional feedback potentiometer or a current sensor (provided as standard on RV..E) offers the option of monitoring the current position of the control valve.

The cam disk LKS 3 is attached to the projecting shaft (beneath the cover cap) for a mechanical air/gas ratio control system. The butterfly valve for air is then moved in the appropriate ratio via a flexible shaft.

Specifications for Control Valve RV

Specifications

General Specifications
Types of Gas: natural gas, town gas, LPG (gaseous) and air, biologically produced methane as a special version (RV..M).
Mains voltage: 220 to 240 V, -15/+10%, 50/60 Hz
110 to 120 V, -15/+10%, 50/60 Hz
24 V -15/+10%, 50/60 Hz
Enclosure: IP 54 in accordance with IEC 592
Safety class: I
Floating additional switches: contact rating: 60 to 250 V, 50/60 Hz, max. 2 A (resistive load).
A special version with gold-plated contacts (RV..G) is required for 24 V. Contact rating at 24 V: max. 40 mA.
Electrical connection: terminal strip 2.5 mm2, 3 × PG 13.5.
Running time: 60 s for 0 to 100% at 50 Hz
Torque: 3 Nm at the projecting shaft
Ambient temperature: -20 to +60°C
Housing: AlSi
Valve disc seal: Perbunan
Measuring connections: Rp 1/8 connected at both ends to: inlet (RV..ML); inlet and outlet (RV..F).
Connection in MODULINE equipment practice or with flange in accordance with ISO 7005, PN 16.
RV..E: Incorporated positioning control.
The following signal waveforms are processed: 0 (4) to 20 mA; 0 to 10 V; or 0 to 135 Ω.
Input resistance:
0 (4) to 20 mA: 50 Ω (load)
0 to 10 V: 150 kΩ (input resistance)
