Ionization Pilot Burner ZMI

Ionization Pilot Burner ZMIThe ionization pilot burner ZMI is designed for the automatic ignition and control of gas burners, in conjunction with the automatic burner controls IFS, PFU 780 burner control, or PFU 760 burner control and ignition transformer TZI or ignition transformer TGI.

Features

  • With one electrode for ignition and control
  • ZMI 16 Capacity: 2800 - 4800 Btu/hr (0.8 - 1.4 kW)
  • ZMI 25 Capacity: 4000 - 11500 Btu/hr (1.2 - 3.4 kW)
  • For all clean industrial gas
Documentation for Pilot Burner ZMI

Documentation

Manufacturer's Product Brochure
Manufacturer's Operating Instructions


Ordering information for Pilot Burner ZMI

Ordering Information

Model Burner Size Length Price
(US List)
Order Now
ZMI 16TB150N 16 mm (0.63 inches) 150 mm (5.9 inches) $245 Buy the ZMI ionization pilot burner
ZMI 16TB200N 16 mm (0.63 inches) 200 mm (7.87 inches) $245 Buy the ZMI ionization pilot burner
ZMI 16TB300N 16 mm (0.63 inches) 300 mm (11.81 inches) $287 Buy the ZMI ionization pilot burner
ZMI 16TB400N 16 mm (0.63 inches) 400 mm (15.75 inches) $319 Buy the ZMI ionization pilot burner
ZMI 16TB500N 16 mm (0.63 inches) 500 mm (19.69 inches) $360 Buy the ZMI ionization pilot burner
ZMI 16TB600N 16 mm (0.63 inches) 600 mm (23.62 inches) $396 Buy the ZMI ionization pilot burner
ZMI 25TB150N 25 mm (0.98 inches) 150 mm (5.9 inches) $330 Buy the ZMI ionization pilot burner
ZMI 25TB200N 25 mm (0.98 inches) 200 mm (7.87 inches) $360 Buy the ZMI ionization pilot burner
ZMI 25TB300N 25 mm (0.98 inches) 300 mm (11.81 inches) $365 Buy the ZMI ionization pilot burner
ZMI 25TB400N 25 mm (0.98 inches) 400 mm (15.75 inches) $411 Buy the ZMI ionization pilot burner
ZMI 25TB500N 25 mm (0.98 inches) 500 mm (19.69 inches) $452 Buy the ZMI ionization pilot burner
ZMI 25TB600N 25 mm (0.98 inches) 600 mm (23.62 inches) $493 Buy the ZMI ionization pilot burner

Accessories

Model Description Price
(US List)
Order Now
Ignition Cable Silicon Cable High Voltage 7mm (priced per foot) $3 Buy Ignition Cable

Applications for Pilot Burner ZMI

Applications

Click on images for close-up view.

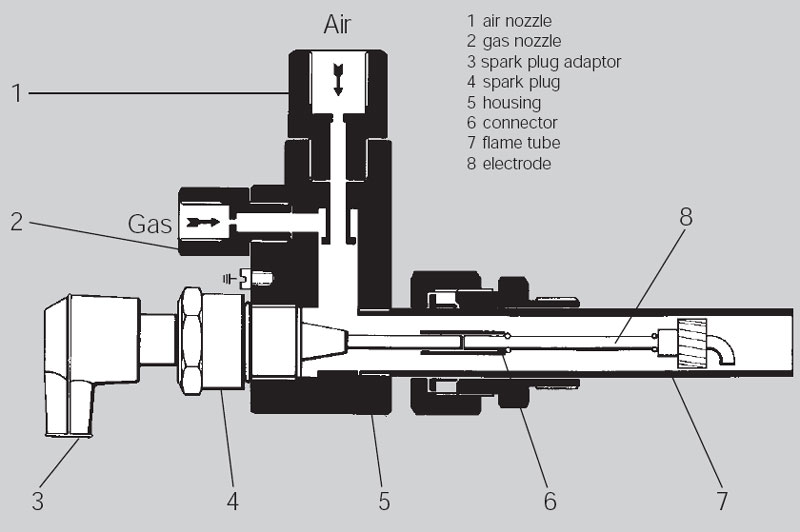

Application for ionization pilot burner ZMI Application

For the automatic ignition and control of gas burners, in conjunction with the automatic burner controls IFS, PFU 780 burner control, or PFU 760 burner control and the ignitiontransformer TZI or ignition transformer TGI.

Specifications for Pilot Burner ZMI

Specifications

General Specifications
Gas connection: ¼NPT
Air connection: 1/2 NPT
Gas pressure range: 4 – 20 in. WC (10 – 50 mbar)
Air pressure range: 4 – 20 in. WC (10 – 50 mbar)
Material of flame tube: 25 CR/20 NI
Housing: Aluminium
Electrode: Kanthal
Burner head: Ceramics
Max. ambient temperature: 183 °F (100 °C)
