Automatic Burner Control Unit IFS 110IM

This automatic burner control unit is for monitoring and controlling gas burners. It can be used for intermittent operation, with ionization or UV control, single-electrode operation possible, multi-flame control possible, FM approved.

Features

• Flame control by means of flame rod or UV-detector
• Flame simulation check before starting and after switching the burner off
• Suitable for ignition and ionization control with one electrode
• Modern technique using semiconductors
• High cycling frequency
• Remote reset
• External fault indication
• FM approved

	Documentation Manufacturer's Product Brochure Manufacturer's Operating Instructions
	Ordering Information Select time for ignition period: 3 5 10 Restart following Flame failure? No Yes IFS 110IMT-3/2/2N 3 second trial for ignition with immediate fault lockout with Restart. US list price: $451 IFS 110IMT-5/2/2N 5 second trial for ignition with immediate fault lockout with Restart. US list price: $451 IFS 110IMT-10/2/2N 10 second trial for ignition with immediate fault lockout with Restart. US list price: $451 IFS 110IMT-W-3/2/2N 3 second trial for ignition with restart following flame failure. US list price: $473 IFS 110IMT-W-5/2/2N 5 second trial for ignition with restart following flame failure. US list price: $473 IFS 110IMT-W-10/2/2N 10 second trial for ignition with restart following flame failure. US list price: $473 Model Trial for Ignition Period Mains Voltage Restart Following Flame Failure? Price (US List) Order Now IFS 110IMT-3/2/2N 3 seconds 110/120 V AC, 50/60 Hz No $451 IFS 110IMT-5/2/2N 5 seconds 110/120 V AC, 50/60 Hz No $451 IFS 110IMT-10/2/2N 10 seconds 110/120 V AC, 50/60 Hz No $451 IFS 110IMT-W-3/2/2N 3 seconds 110/120 V AC, 50/60 Hz Yes $473 IFS 110IMT-W-5/2/2N 5 seconds 110/120 V AC, 50/60 Hz Yes $473 IFS 110IMT-W-10/2/2N 10 seconds 110/120 V AC, 50/60 Hz Yes $473 IFS 110IM-W-10/1/1T 10 seconds 230 V AC, 50/60 Hz Yes $685 IFS 110IM-W-10/1/1N 10 seconds 110/120 V AC, 50/60 Hz Yes $685

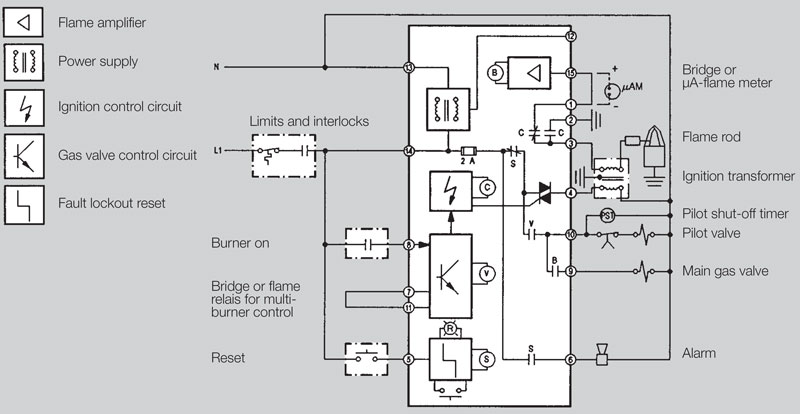

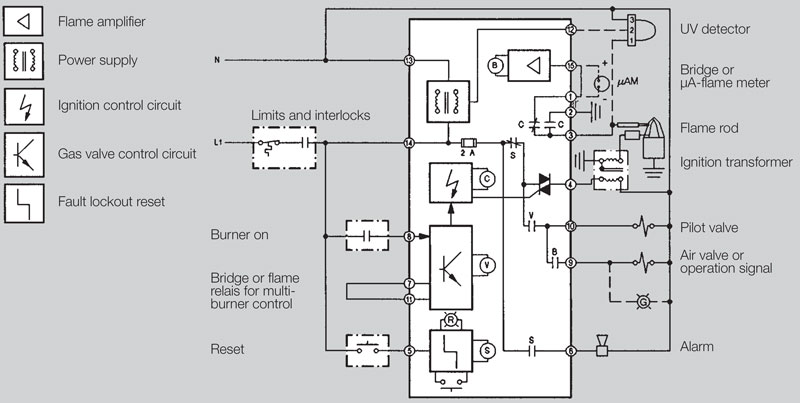

	Applications Click on images for close-up view. Operation with one electrode for spark ignition and ionization control The ignition and control of the burner with only one electrode is possible when using ignition transformers TZI or TGI. During the ignition, the high voltage coil of the ignition transformer is grounded via the burner control unit. For the flame control, the electrode is switched to the flame amplifier of the burner control via the high voltage winding. Direct spark ignition Interrupted pilot system
	Specifications General Specifications Operating voltage: 110/120 V, +10/-15%, 50/60 Hz Trial for ignition period: 3, 5 or 10 s Ignition time: approx. 2, 3 or 7 s Remote reset: yes Power consumption: 9 VA Output for ignition transformer: by means of semi-conductors - no switch contacts Output voltage for valves and ignition transformer: supply voltage Contact load: max. 1 A per output Total load: max. 2 A Flame rod: 220 VAC Ionisation current: > 1 µA Reaction time: < 2 s No. of valves: 2 Protection in the device: micro fuse T2AH 250 V slow-blow, acc. IEC 127-2/5 Fault indicator: LED in the reset button and connection for external fault indicator Ambient temperature: -4 °F to 140 °F (-20 °C to + 60 °C) Type of enclosure: NEMA 1 Fitting position: arbitrary Weight: 1.57 lbs (0.71 kg) Construction: Housing of impact resistant plastic. Plugin upper housing with controller and amplifying stage, reset push-button with fault indication on the top of the device. Plug socket with terminals grounding strip and retaining screws. Seven openings provided for external wire connections. Terminals: 2 × AWG 16 (2 × 1.5 mm2)
