Actuator IC 20

The actuators IC 20 and IC 40 are for all applications that require precise, controlled rotary movement between 0° and 90°. They can be mounted directly onto butterfly valve BVG or butterfly valve BVH to control gas and air flow rates on gas burners. They are designed for control ratios up to 1:10.

An optional integrated feedback potentiometer offers the option of monitoring the current position of the actuator. This scan function can be used in automation processes.

IC 20 is used for basic applications. It is controlled by a continuous signal or three-point step signal. The automatic/manual mode changeover and the position indicator that can be read externally assist in the setting of the infinitely adjustable switching cams upon commissioning. This enables precise settings even in the low-fire rate range.

Features

• IC 20 for basic applications with continuous or three-point step control and automatic/manual mode changeover for easy commissioning
• IC 20..E with electronic positioning function and adjustable behaviour in the event of cable break
• IC 40 for complex applications with programmable functions for flexible adjustment to the process, with statistics and error history to support service personnel
• A position indicator that can be read externally
• Spacious connection chamber for ease of installation
• Actuator can be mounted directly onto the butterfly valves BVG or BVH
• UL listed

	Documentation Manufacturer's Product Brochure Manufacturer's Operating Instructions Manufacturer's Technical Sheet
	Ordering Information Model Running Time Mains Voltage Torque Continuous control Price (US List) Order Now IC 20-07W2 7.5 seconds 230 V AC, -15/+10%, 50/60 Hz 2.5 Nm No $343 IC 20-15W3 15 seconds 230 V AC, -15/+10%, 50/60 Hz 3.0 Nm No $343 IC 20-30W3 30 seconds 230 V AC, -15/+10%, 50/60 Hz 3.0 Nm No $343 IC 20-60W3 60 seconds 230 V AC, -15/+10%, 50/60 Hz 3.0 Nm No $343 IC 20-07Q2 7.5 seconds 120 V AC, -15/+10%, 50/60 Hz 2.5 Nm No $343 IC 20-15Q3 15 seconds 120 V AC, -15/+10%, 50/60 Hz 3.0 Nm No $343 IC 20-30Q3 30 seconds 120 V AC, -15/+10%, 50/60 Hz 3.0 Nm No $343 IC 20-60Q3 60 seconds 120 V AC, -15/+10%, 50/60 Hz 3.0 Nm No $343 IC 20-07W2E 7.5 seconds 230 V AC, -15/+10%, 50/60 Hz 2.5 Nm 0 (4) – 20 mA, 0 – 10 V $779 IC 20-15W3E 15 seconds 230 V AC, -15/+10%, 50/60 Hz 3.0 Nm 0 (4) – 20 mA, 0 – 10 V $779 IC 20-30W3E 30 seconds 230 V AC, -15/+10%, 50/60 Hz 3.0 Nm 0 (4) – 20 mA, 0 – 10 V $779 IC 20-60W3E 60 seconds 230 V AC, -15/+10%, 50/60 Hz 3.0 Nm 0 (4) – 20 mA, 0 – 10 V $779 IC 20-07Q2E 7.5 seconds 120 V AC, -15/+10%, 50/60 Hz 2.5 Nm 0 (4) – 20 mA, 0 – 10 V $779 IC 20-15Q3E 15 seconds 120 V AC, -15/+10%, 50/60 Hz 3.0 Nm 0 (4) – 20 mA, 0 – 10 V $779 IC 20-30Q3E 30 seconds 120 V AC, -15/+10%, 50/60 Hz 3.0 Nm 0 (4) – 20 mA, 0 – 10 V $779 IC 20-60Q3E 60 seconds 120 V AC, -15/+10%, 50/60 Hz 3.0 Nm 0 (4) – 20 mA, 0 – 10 V $779 For all other configurations Contact Combustion 911 Accessories Model Description Price (US List) Order Now IC-20/40 ACC 01 Fastening set IC-BVG/BVA/BVH/LFC /B $9 IC-20/40 ACC 02 Attachment set IC 20/IC 40 single application /B $78 BCU OPTO Opto-adapter (serial port connection) includes BCSoft CD-ROM $299 For all other accessories Contact Combustion 911

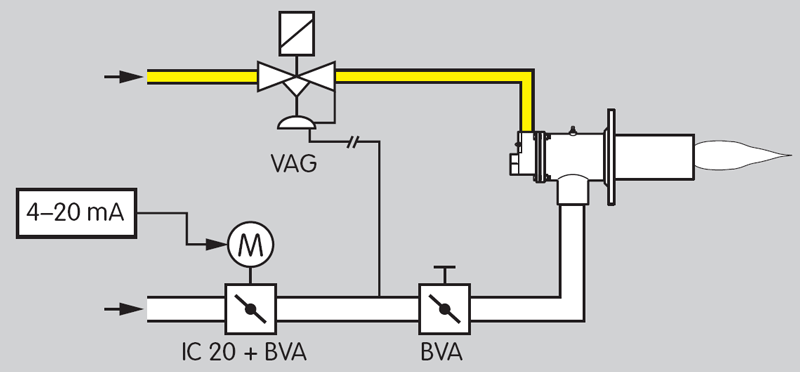

	Applications Click on images for close-up view. IC 20, continuous control For processes that require high temperature accuracy and low circulation in the furnace. The actuator IC 20 is controlled by a three-point step controller. IC 20..E, continuous control For processes that require high temperature accuracy and low circulation in the furnace. The actuator IC 20..E is controlled by a 4 – 20 mA, 0 – 20 mA or 0 – 10 V signal.
	Specifications Electrical Mains voltage: 120 V AC, -15/+10%, 50/60 Hz, 230 V AC, -15/+10%, 50/60 Hz. Power consumption: 4.9 VA at 50 Hz, 5.8 VA at 60 Hz. Angle of rotation: 0 – 90°, adjustable. Holding torque: torque Switching power of the position switches: Voltage Resitive load Incand. lamp load Inductive load 125 V~ 2 A 0,5 A 2 A 250 V~ 2 A 0,5 A 2 A <30 V= 2 A 2 A 2 A <50 V= 1 A 0,4 A 1 A <75 V= 0,75 A 0,3 A 0,75 A <125 V= 0,5 A 0,2 A 0,5 A <250 V= 0,25 A 0,1 A 0,25 A 12…30 V~/= 100 mA   100 mA     IC 20..E Power consumption: Terminals 1, 2 and 5: 4.9 VA at 50 Hz, 5.8 VA at 60 Hz Terminal 3: 8.4 VA at 50 Hz, 9.5 VA at 60 Hz, in total not exceeding: 8.4 VA at 50 Hz, 9,5 VA at 60 Hz. Feedback output: galvanically isolated, load impedance max. 500 Ω. Input: galvanically isolated, 4 (0) – 20 mA: load impedance switchable from 50 Ω to 250 Ω, 0 – 10 V: 100 kΩ input resistance.     General Enclosure: IP 65 pursuant to IEC 529 Protection class: impact-resistant and heat-resistant plastic Electrical connection: Line entrance: 3 × M20 plastic screw connectors. Ambient temperature: -20 to 60°C, no condensation permitted.
